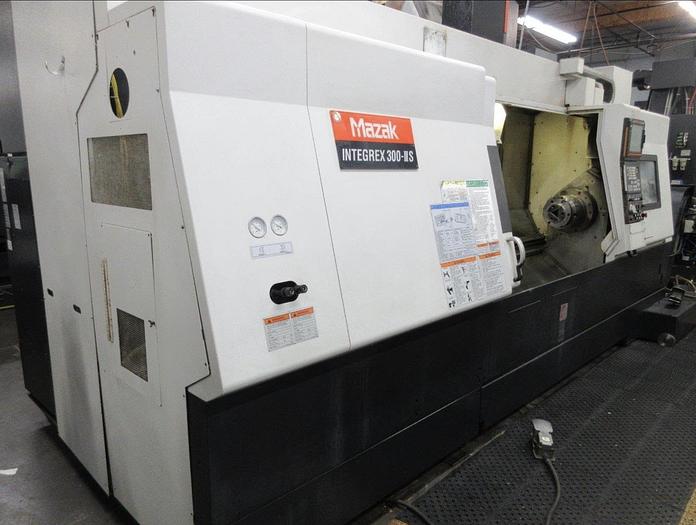

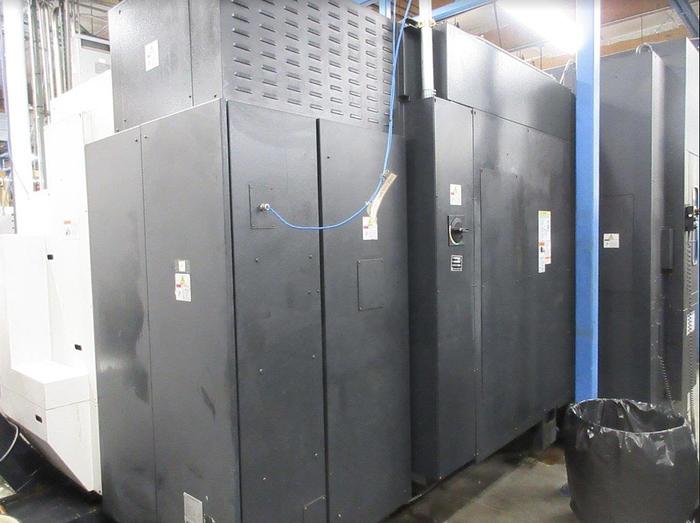

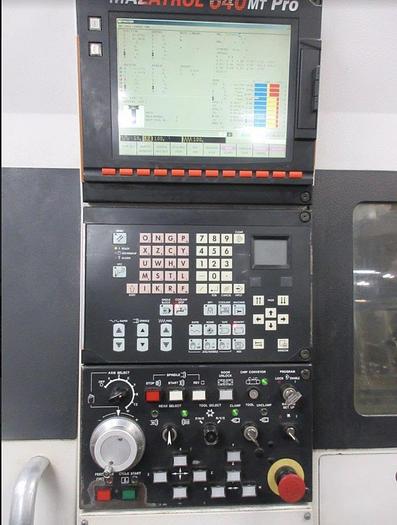

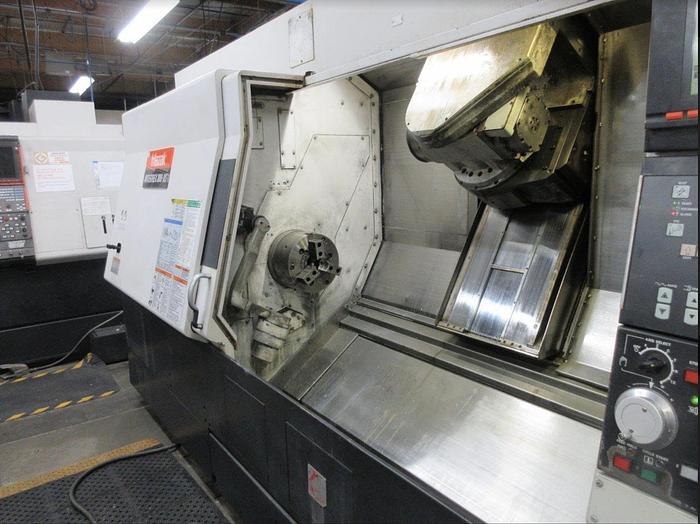

2006 MAZAK INTEGREX 300 3S

Specifications (subject to buyer verification):

Maximum Swing........................... 30";

Maximum Swing using Y-Axis.............. 26" - 30";

Maximum Swing over Cross Slide.......... 30";

Maximum Cutting Diameter: Chucking...... 30";

Maximum Cutting Length 60".............. 60";

Maximum Distance Between Chuck Faces 60"; 60.2";

MAIN SPINDLE SPECIFICATIONS (L):

Spindle Nose............................ A2-8

Spindle Bore............................ 3.46";

Maximum Bar Work.... ................... 3.0" Dia.

Spindle Speed........................... 4,000 RPM

Spindle Index (Programmable)............ 0.0001 Deg.

Spindle Horsepower (Cont./30 Mins.)..... 30/35 HP (AC)

Spindle Torque.......................... 442.5 ft-lbs.

SECOND SPINDLE SPECIFICATIONS (R)

Spindle Nose............................ A2-8

Spindle Bore............................ 3.46";

Maximum Bar Work........................ 3" Dia.

Spindle Speed........................... 4,000 RPM

Spindle Index (Programmable)............ 0.001 Deg.

Spindle Horsepower (Cont./30 Min.)...... 30/35 HP (AC)

Spindle Torque.......................... 368.8 ft-lbs

TURRET AND TOOLING SPECIFICATIONS:

Magazine Capacity....................... 80 Tools

Tool to Tool ATC Time................... 1.3 Sec.

Max. Tool Dia. w/All Pockets Full....... 3.54"
