2012 Walter HELITRONIC BASIC

With its 5 CNC axes, the HELITRONIC BASIC sharpens

and grinds a wide spectrum of precision tools for metal

and wood with the highest precision and quality. Short

setup and idle times produce economic results from a

batch size of 1 even in multiple shift operation with low

staffing levels. For new entrants to the world of premium

tools, this is a good recommendation.

Application

• Grinding rotationally symmetrical tools for metalworking

and woodworking industries

• For production and/or regrinding

• Complete machining with only a single clamping cycle

• Machinable materials include HSS, carbide, cermet, ceramic

The machine

• Low vibration, solid grey cast iron, gantry type construction

• X, Y, Z linear axes with ball-type linear drive

• A, C rotating axes with worm drives

• Belt-driven spindle with two ends

• Each spindle end can take up to three grinding wheels

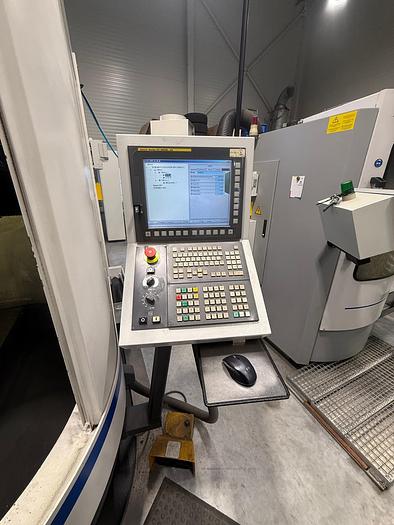

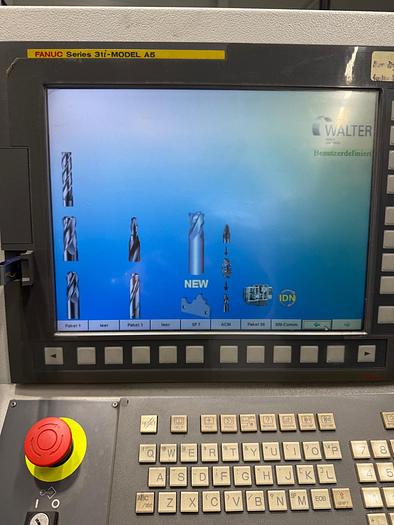

• FANUC, the global standard for control equipment

• A variety of automatic loading systems

• Numerous efficiency options

Mechanical axes

X axis 460 mm

Y axis 320 mm

Z axis 660 mm

Rapid traverse speed X, Y, Z max. 15 m/min

C axis ± 200°

A axis ∞

Linear resolution 0.0001 mm

Radial resolution 0.0001°
