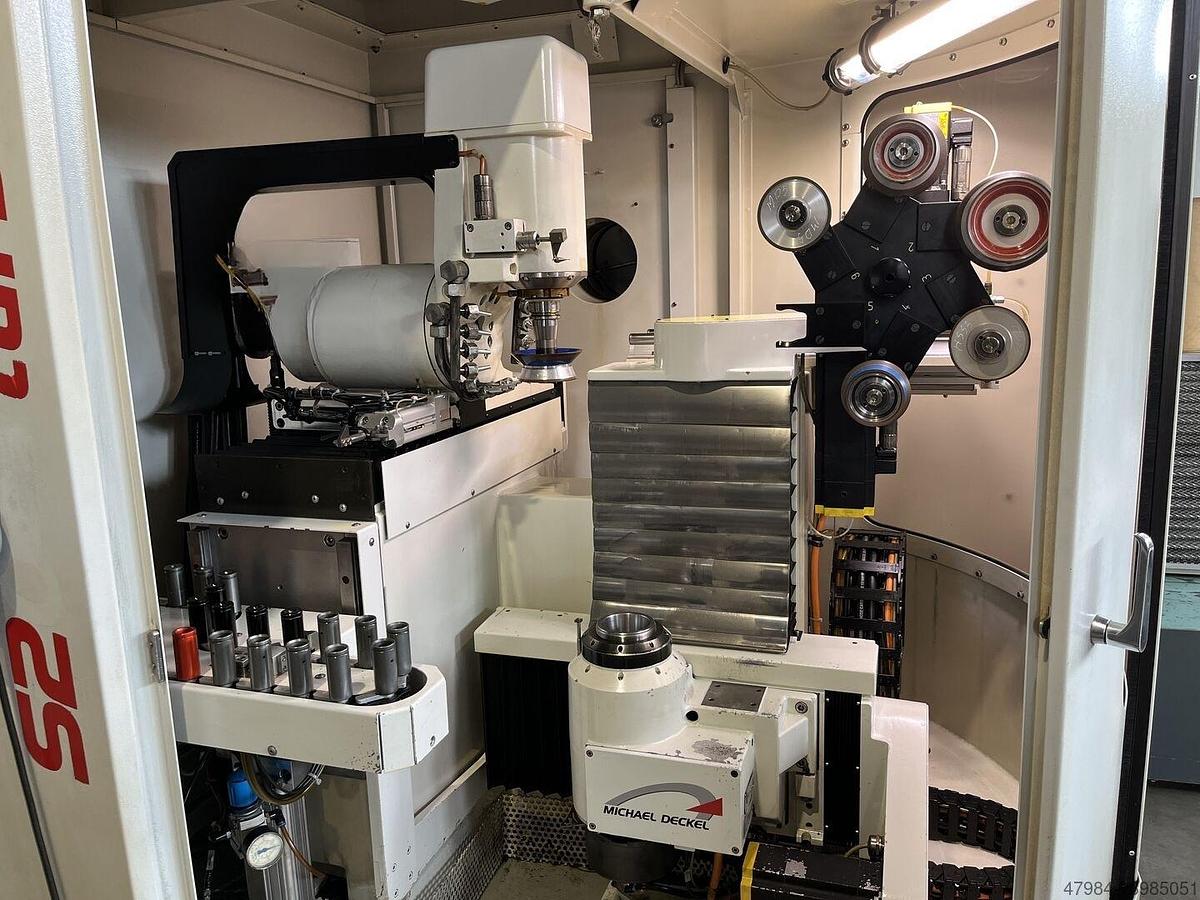

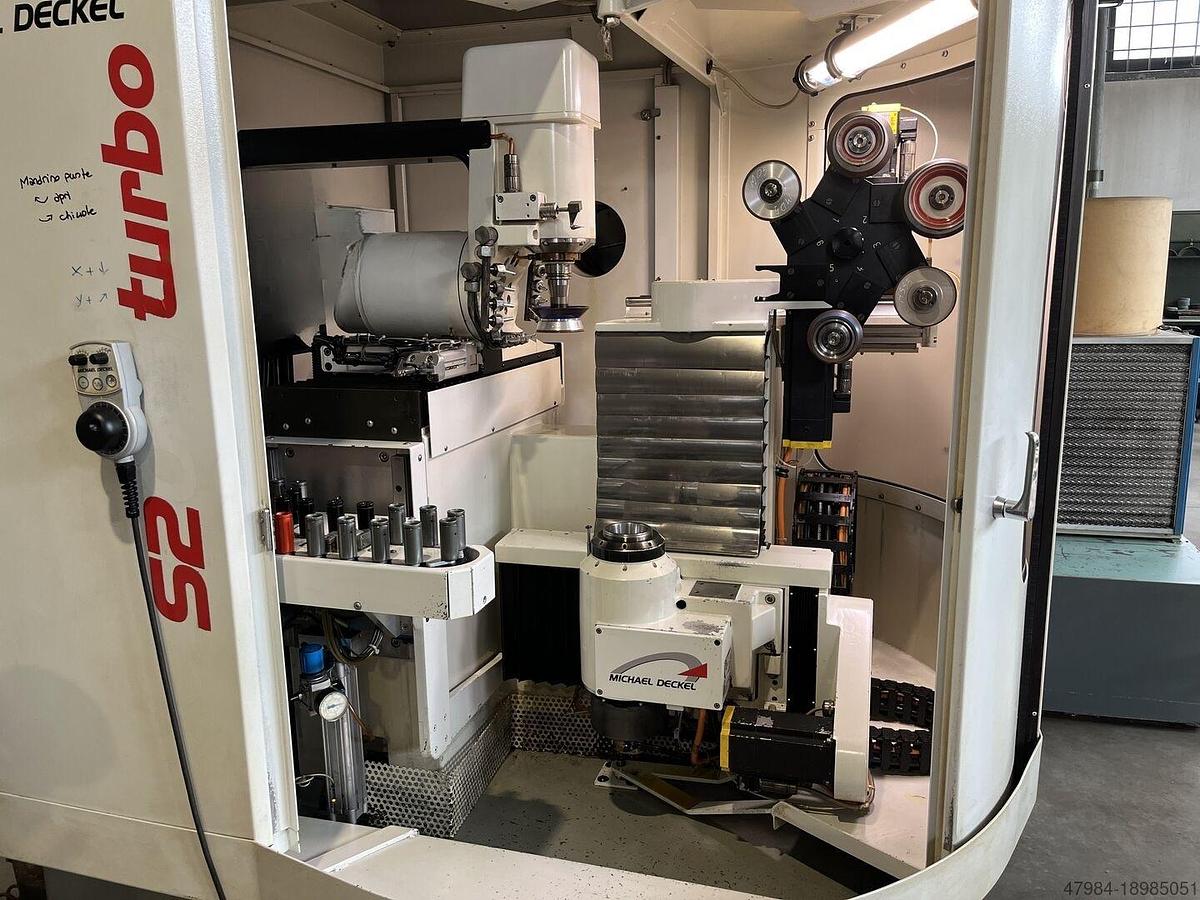

2010 Michael Deckel S20E Turbo

Afiadora CNC de ferramentas conforme as seguintes especificações:

Technical details

Total height: 2,400 mm

Total length: 4,000 mm

Total width: 3,000 mm

Overall weight: 2,500 kg

Travel distance X-axis: 340 mm

Travel distance Y-axis: 240 mm

Travel distance Z-axis: 240 mm

Swivel angle A-axis (max.): 360 °

Swivel angle C-axis (max.): 197 °

Description

TECHNICAL DATA:

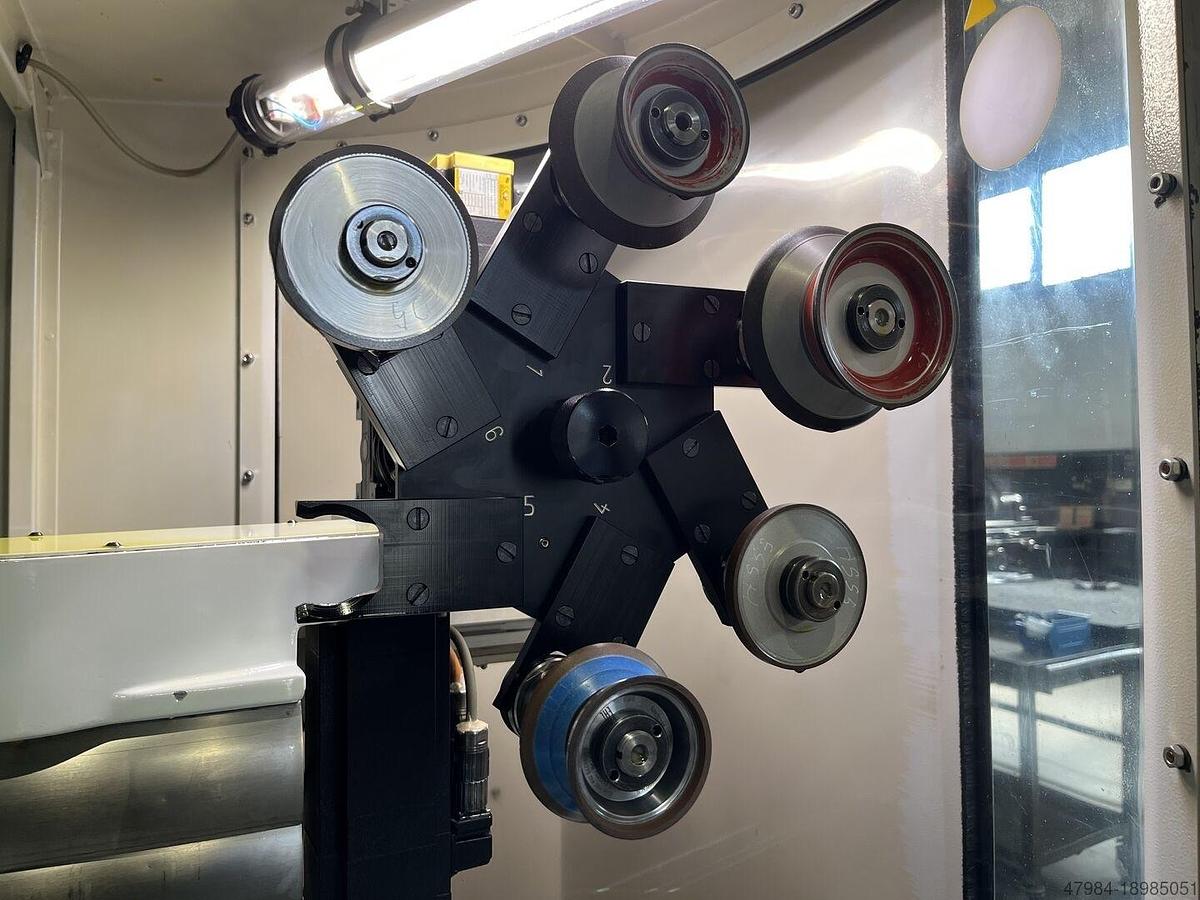

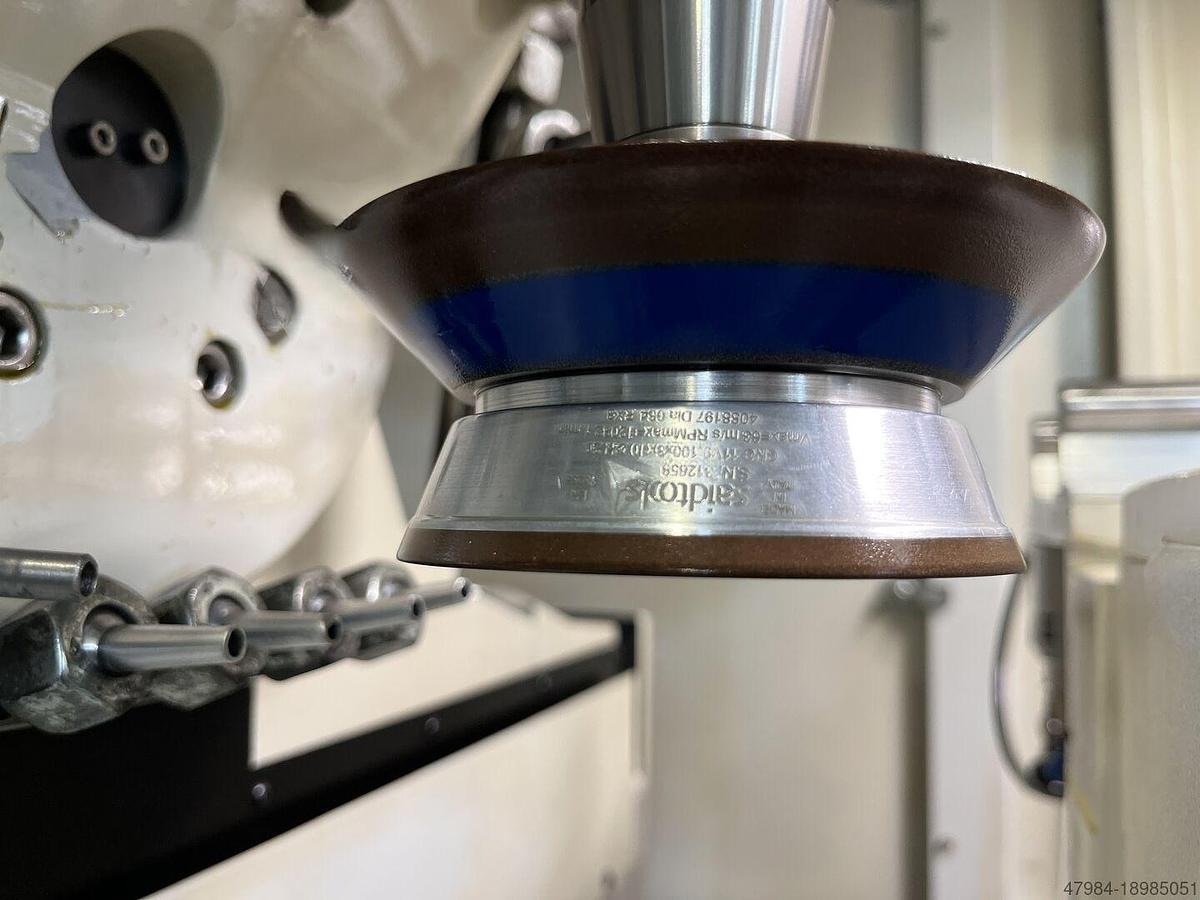

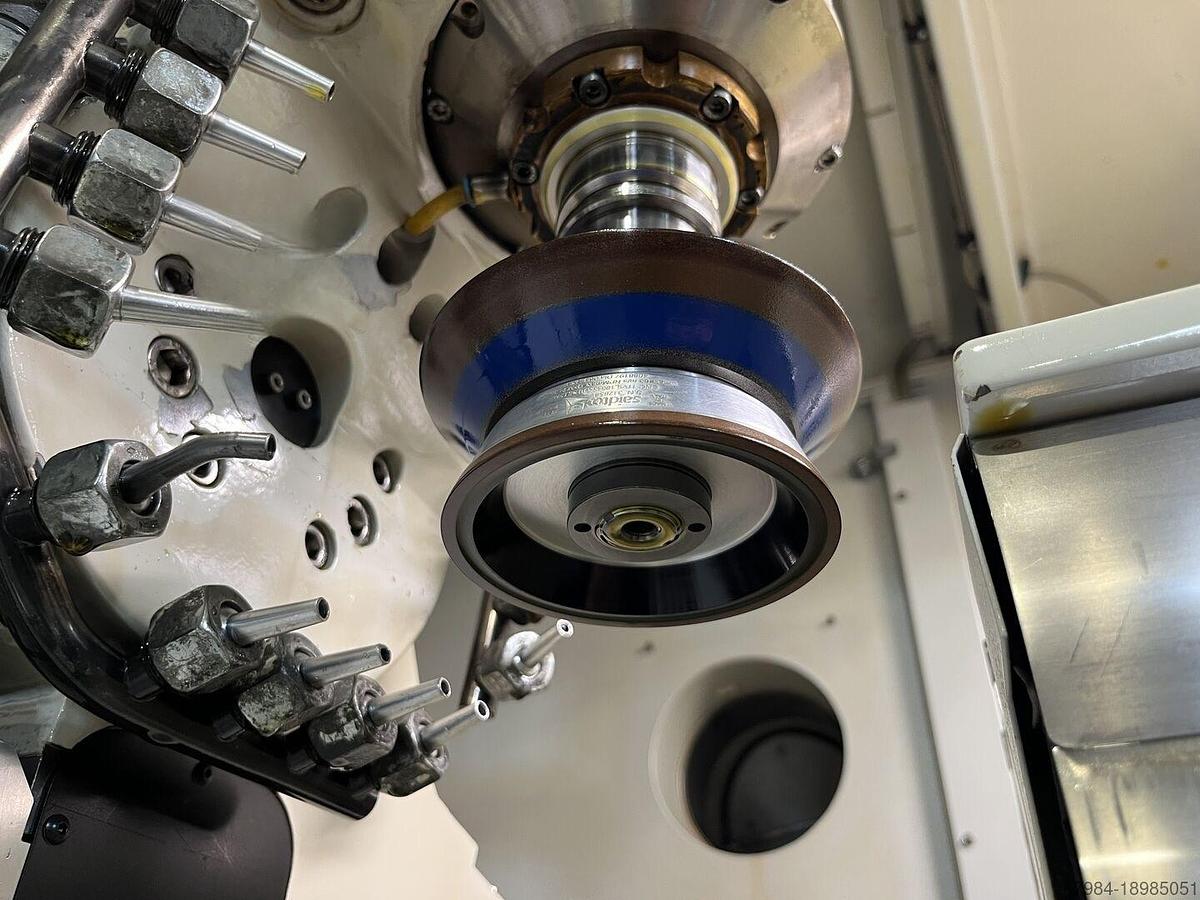

- Max. grinding wheel diameter: 150 mm

- Speed range: 1,000 – 8,000 rpm

- Workpiece taper: SK 50

- Max. workpiece weight: 50 kg

Workpiece dimensions:

- Max. diameter: approx. 250 mm

- With counter center: max. Ø 125 mm

- Max. length: approx. 500 mm

- With counter center: max. 250 mm

- Maximum grinding length: 340 mm

Travel paths:

- X-axis grinding stroke: 340 mm

- Y-axis infeed: 240 mm

- Z-axis infeed: 240 mm

Ksb An Npgswdpc No Islt

Axes:

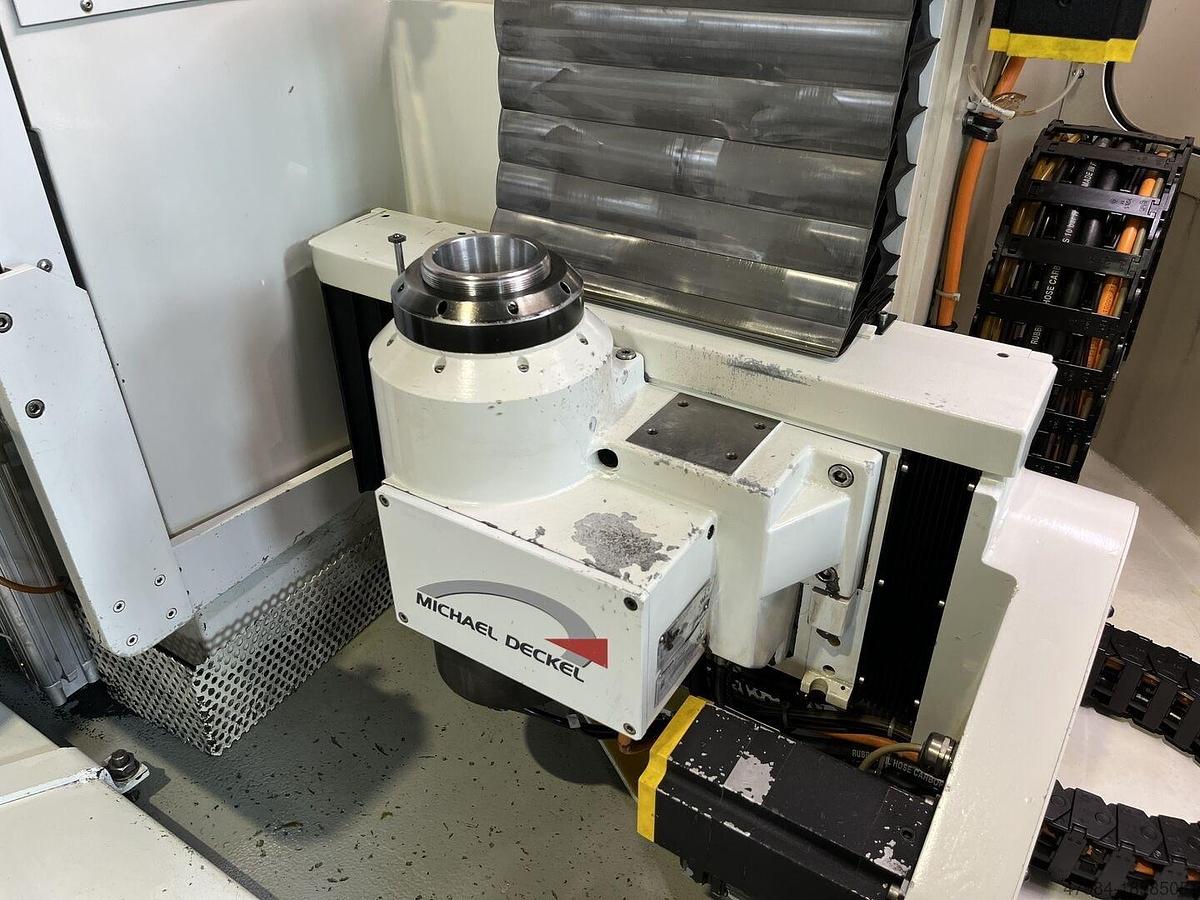

- A-axis:

- Speed: 120 rpm

- Rotation range: 360°

C-axis:

- Speed: 20 rpm

- Rotation range: 197°

EQUIPMENT:

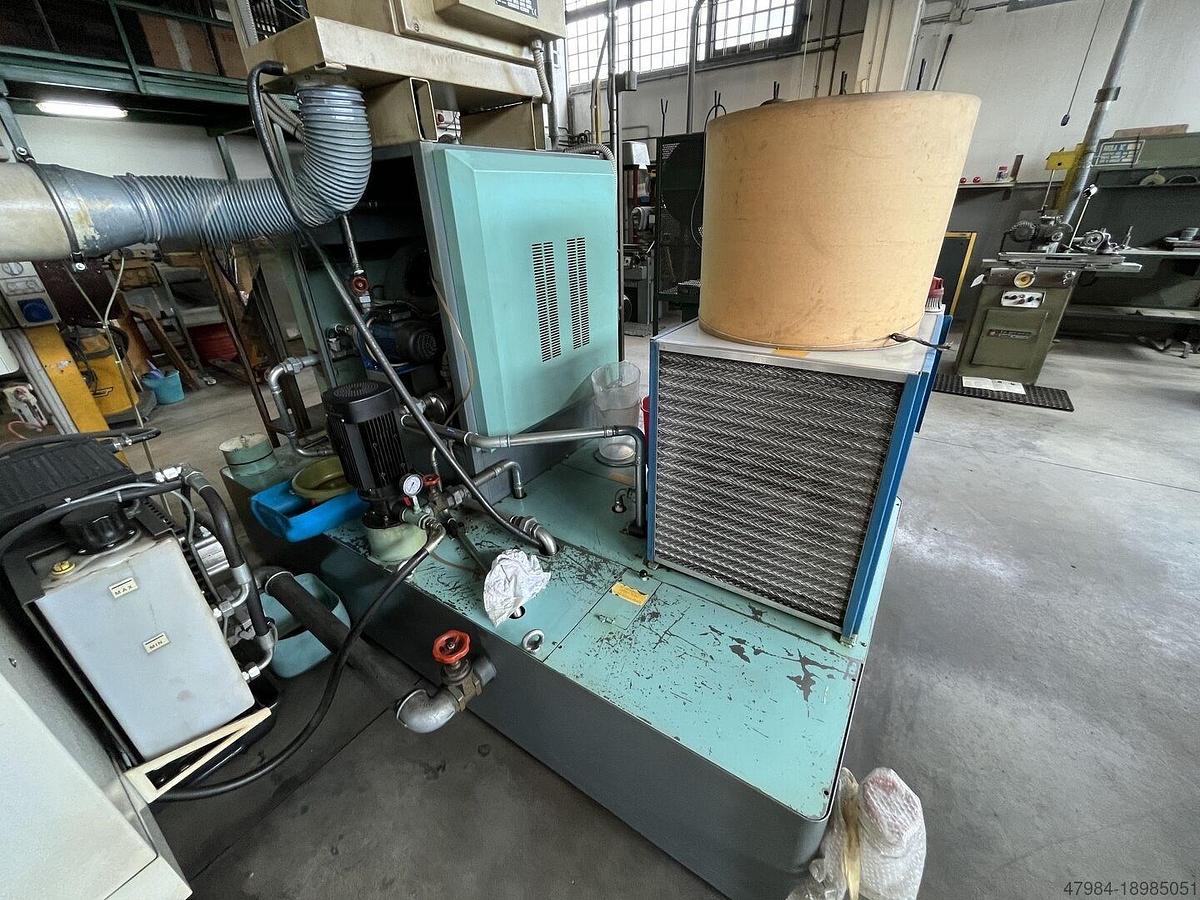

- Coolant treatment

- Oil mist extraction

- Documentation
