2013 LIEBHERR LIEBHERR LFS 380

DESCRIPTION:

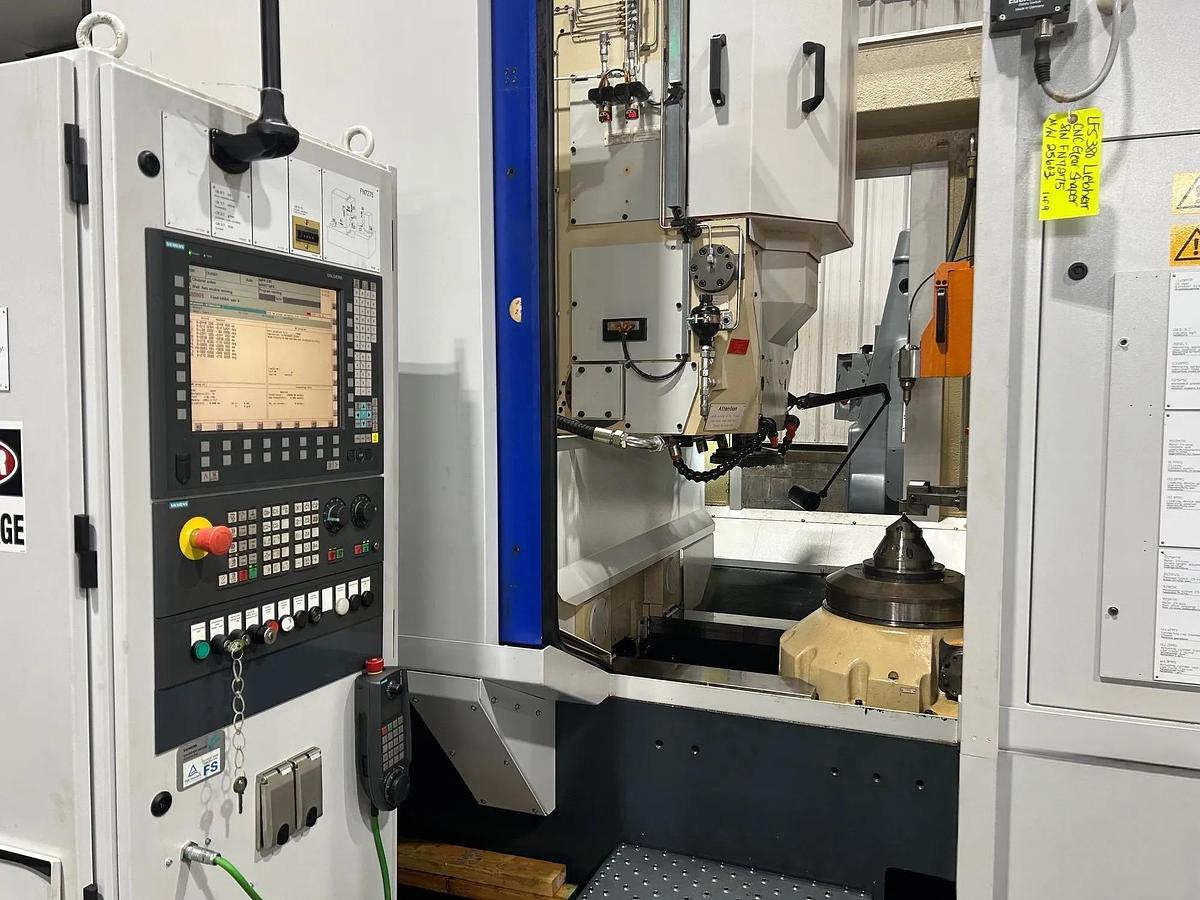

The Liebherr LFS380 CNC gear shaper is a highly precise machine designed for cutting internal and external gear teeth. It is a 6-axis CNC machine equipped with a Siemens 840D control. The LFS380 features a tilting column, an 180-degree ring loader, and a tailstock. It is used in various manufacturing industries, including automotive, aerospace, and machinery manufacturing.

EQUIPPED WITH:

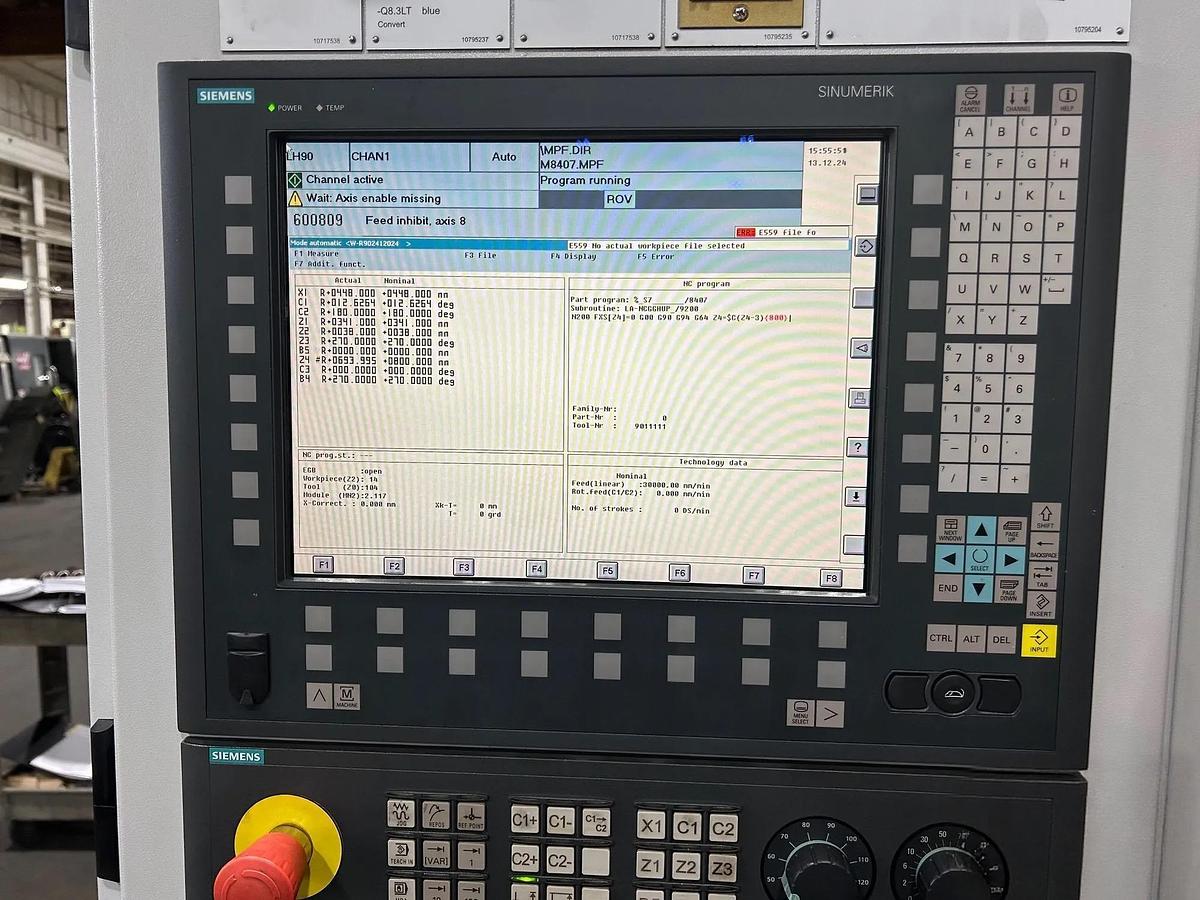

Siemens 840D SL Control

Spur Guide

Extended Column Tailstock W/Center

Tilting Column

180 Degree Ring Loader

Chip Conveyor

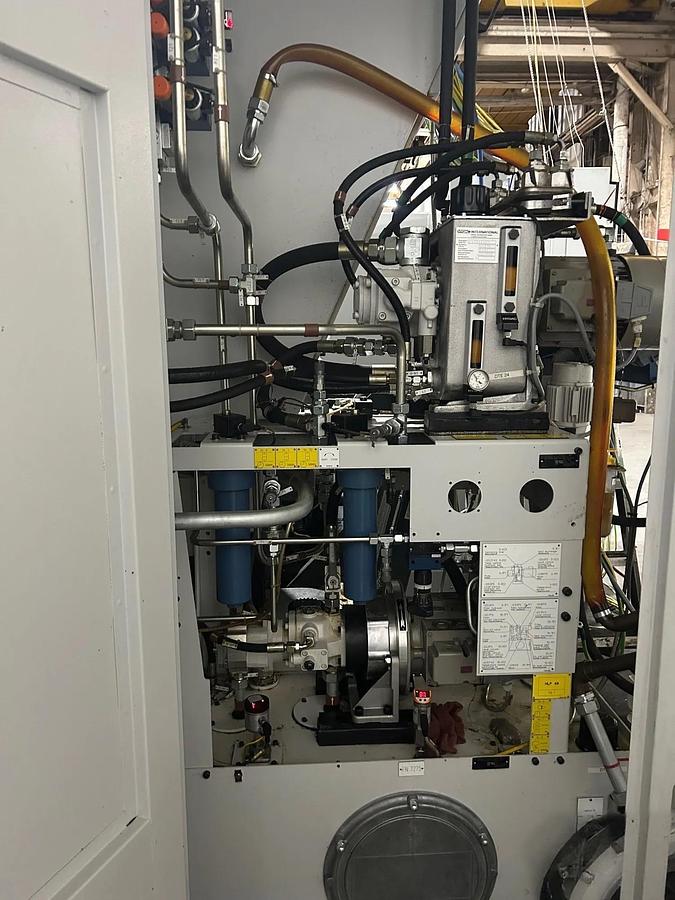

Hydraulic System

Coolant System

Mist Collector

Manuals

Stack Light

Work Lights

CE Mark

480 Volt

SPECIFICATIONS:

 GUIDESpurMAXIMUM WORKPIECE DIAMETER14.96"MINIMUM CENTER DISTANCE1.96"MAXIMUM CENTER DISTANCE17.71"MODULE8DIAMETRAL PITCH3"CUTTER HEAD SLIDE9.84"MAXIMUM FACE WIDTH4"CUTTER SPINDLE DIAMETER4.33"STROKE4"MAXIMUM STROKE SPEED1,500 strokes/min.SPINDLE TAPER40MAXIMUM TOOL DIAMETER240"TABLE DIAMETER12.68"TABLE BORE DIAMETER4.6"MAXIMUM TABLE SPEED30 RPMTILTABLE COLUMN RANGE-5°STEADY COLUMN AXIAL TRAVEL9.84"CONTROL MANUFACTURERSiemensCONTROLCNC (SIEMENS 840DSL)DIMENSIONS215" x 78" x 140"WEIGHT32,000#
