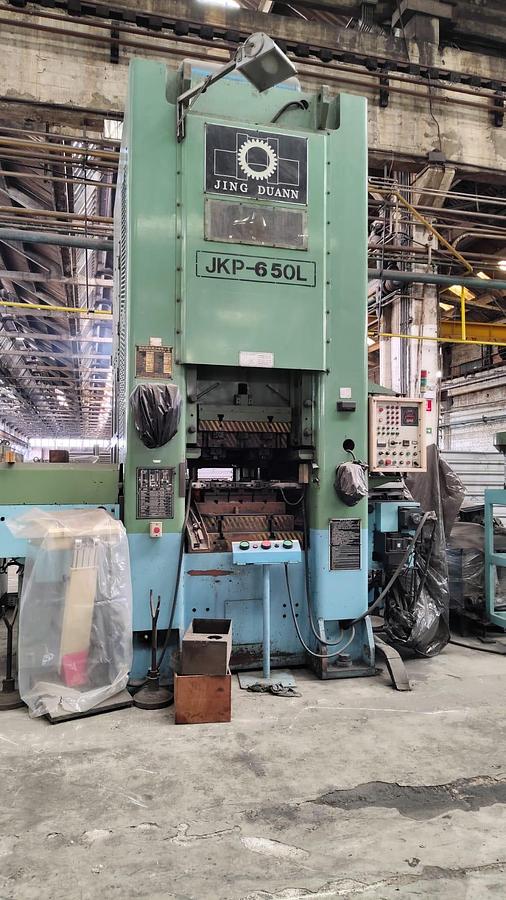

2008 Jing Duann JKP 650-L

JKP Knuckle Joint Cold Forging Presses are suitable for precise and minimum tolerance cold forging applications such as parts for automobiles, bicycle, aerospace device, and engine. Of course the machine could be used in steel, aluminum, copper, and titanium alloy forging. The machine not only could produce cold forging parts, but also could do coining and sizing the shape of hot forging parts.

Item / Model Unit JKP-650L

Capacity Tons 650

Stroke of ram mm 200

Adjustment of ram mm 15

Number of stroke Spm 35

Work number of stroke Spm 12

Shut height mm 607.5

Rated tonnage point mm 8

(L-R & F-B) Ram dimension mm 750*700

(L-R & F-B) Table dimension mm 900*840

(L-R & F-B) Side window mm 600*500

Main motor Kwxp 55kw*4p

45kw*6p

Ram of adjustment motor Kwxp 0.75kw*4p

Motor of lubrication Kwxp 0.75kw*4p

Ejector in the ram Tons-mm 6Ton-30mm

Ejector in the table Tons-mm 3x10=30Ton-80mm

Oil hydraulic press of cluth Kwxp 0.75kw*4p

Oil type cooler of cluth Kwxp 3.2kw

Working number-distance Number-mm 3-200

Air pressure kg/cm2 5

Press weight kg 48,000

(L*W*H*) Press dimension mm 2920*2480*4430
