2023 Walter Helitronic Raptor Diamond

WALTER

YEAR: 2023

MODEL: HELITRONIC RAPTOR DIAMOND

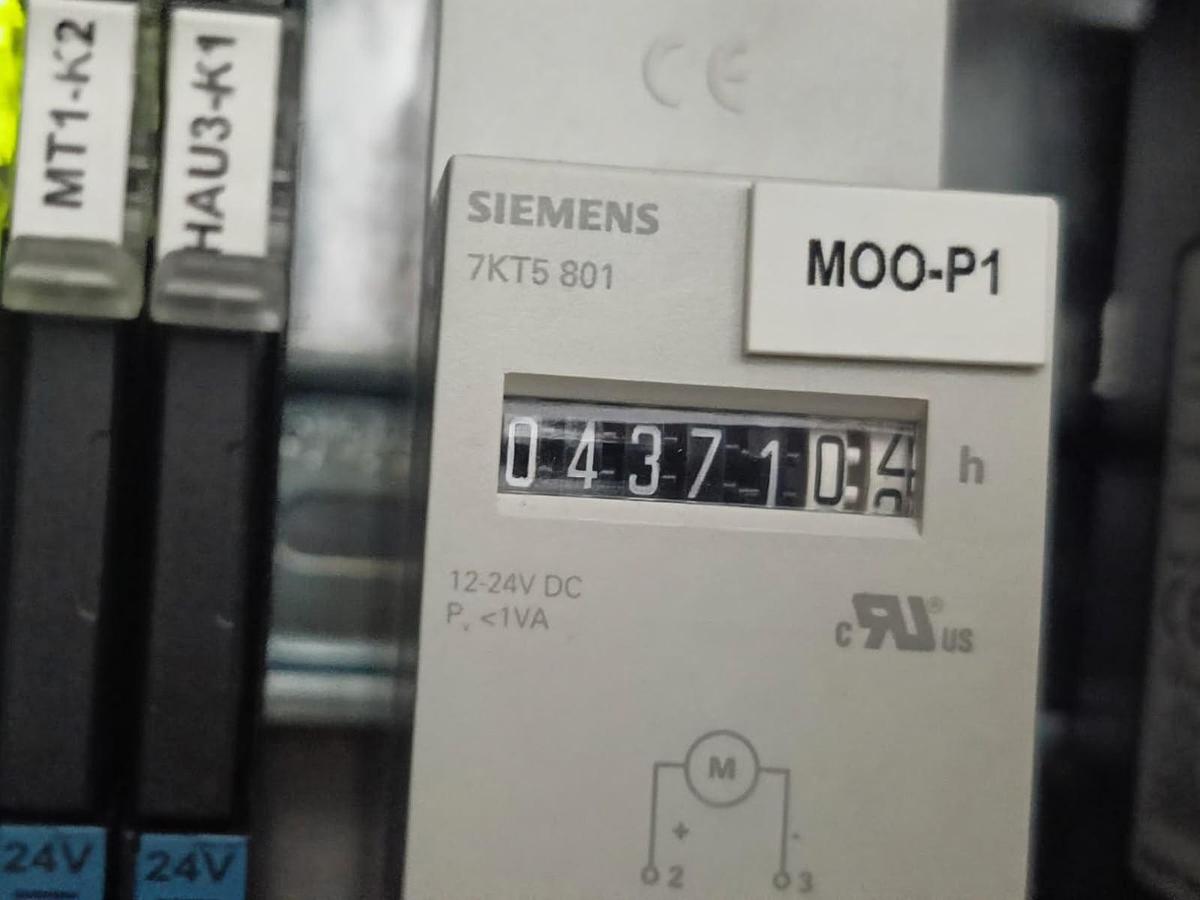

PRODUCTION HOURS: 4371

APPLICATION TYPE: GRINDING

LOCATION: POLAND

MACHINE TYPE: CYLINDRICAL GRINDING MACHINE

[10:53 AM, 08/09/2026] Claudio Polverini: TECHNICAL SPECIFICATION

SPINDLE POWER: 11.5 KW

SPINDLE SPEED: 10500 RPM

Additional Information

Operating hours: approx. 4,371 h

Working range:

Tool diameter: Ø3–290 mm (optional up to Ø400 mm, depending on configuration)

Maximum tool length: 270 mm (optional up to 350 mm, depending on configuration)

Maximum tool weight: 50 kg

Axes:

Number of CNC axes: 5

Linear axis speed: up to 15 m/min

Spindle:

Max grinding wheel diameter: Ø200 mm

Interface: HSK

Belt-driven, double-ended spindle

Grinding / Eroding:

Grinding and EDM in one setup

For carbide, HSS, PCD, CBN tools

Configurable for up to 3 electrodes and 3 grinding wheels, or alternatively up to 6 grinding wheels

Control / Machine design:

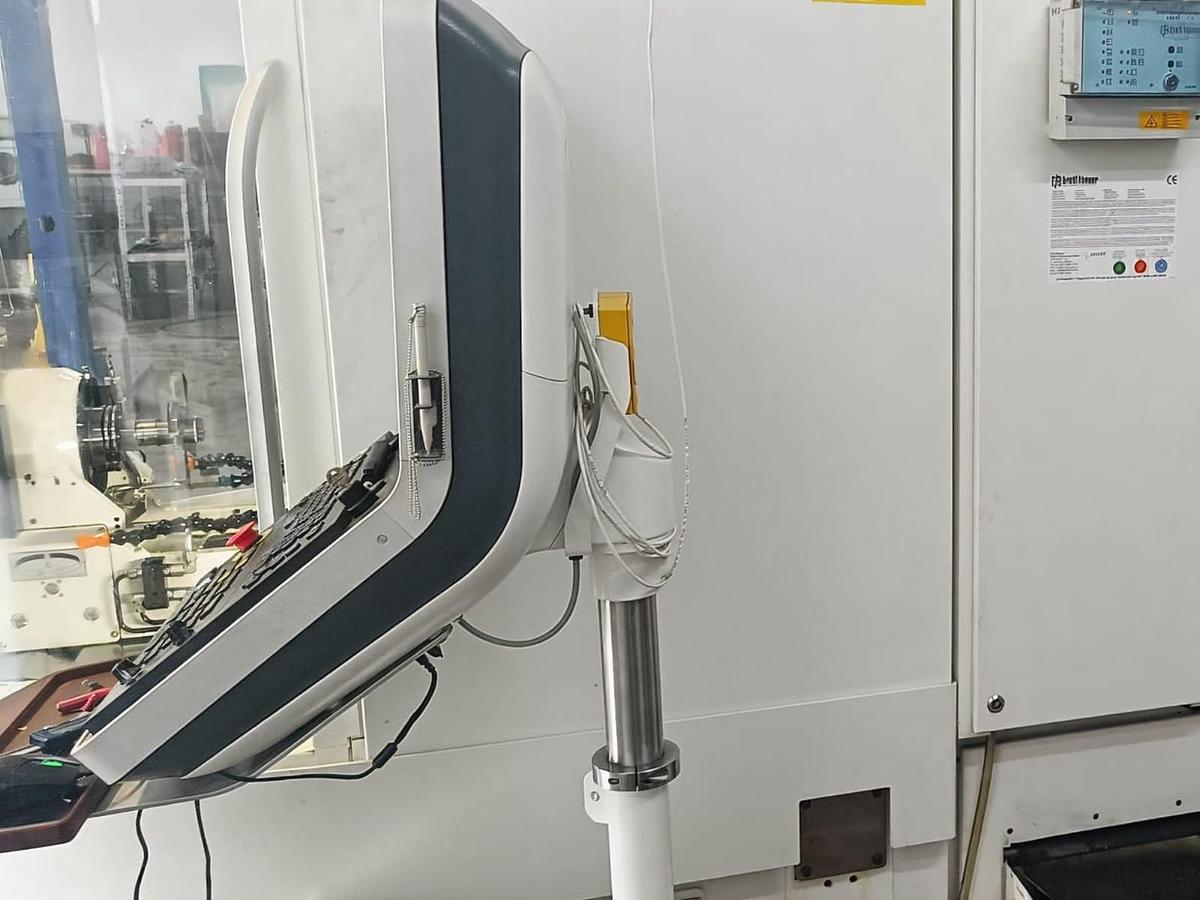

WALTER / UNITED GRINDING CNC control

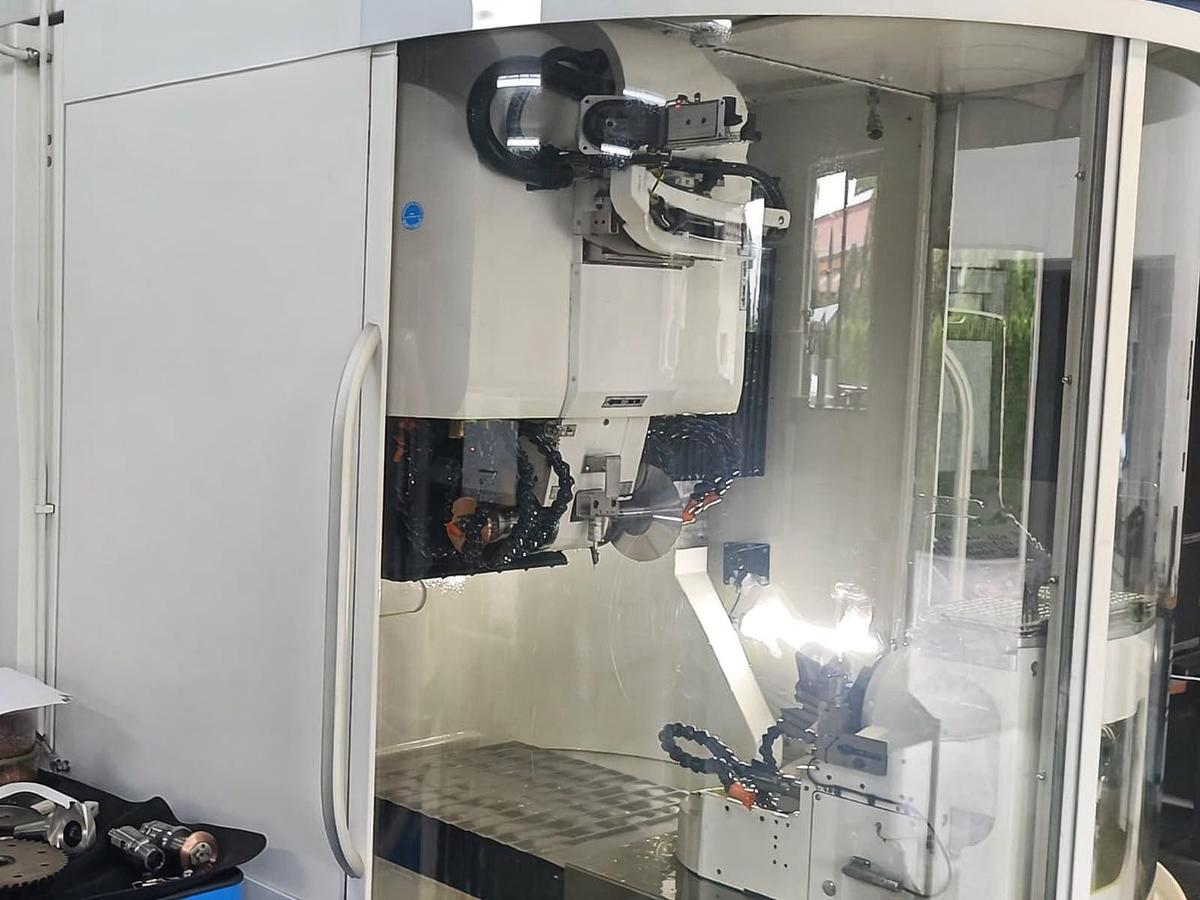

Enclosed working area with automatic protective door

Additional equipment

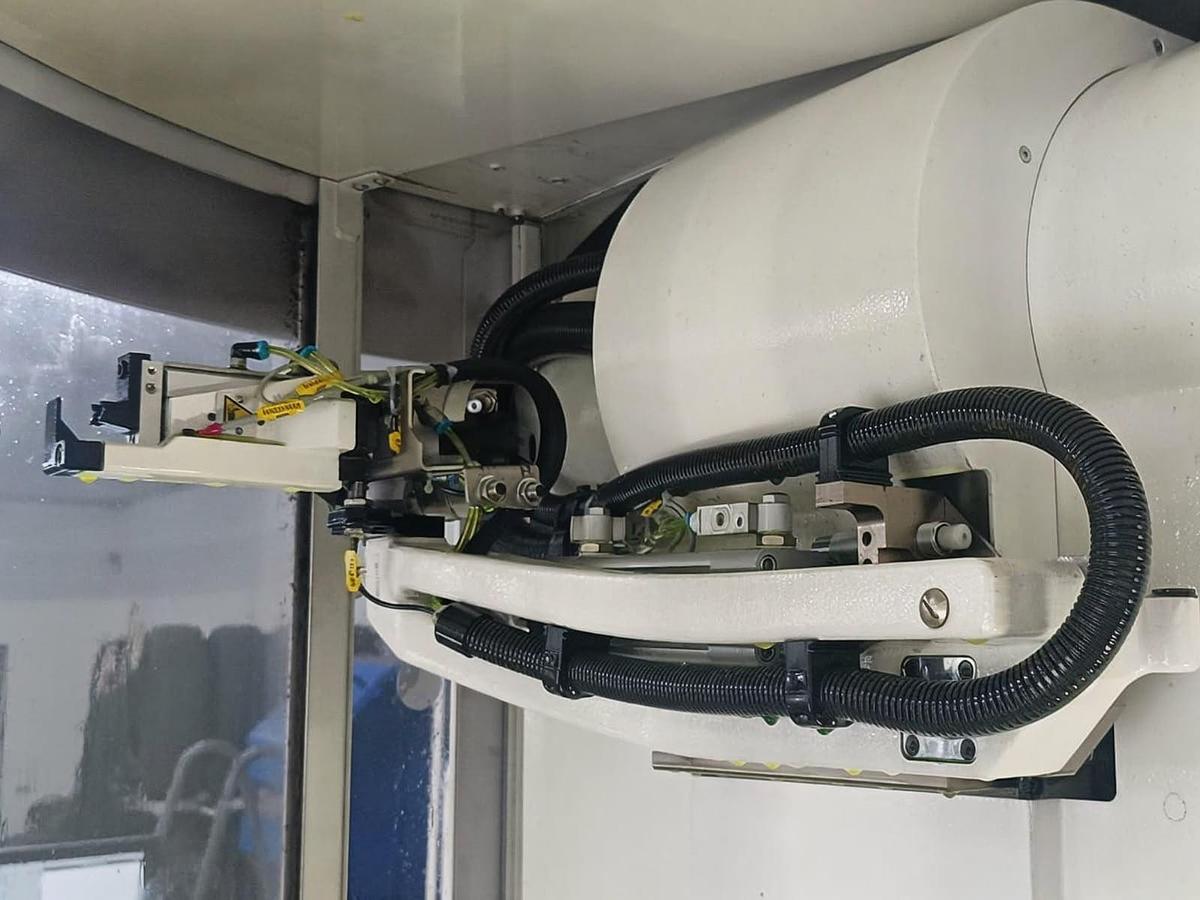

Automatic loading/manipulator system for shank tools (automatic tool loader/manipulator)

Process cooling system

Coolant/dielectric filtration and circulation system

Coolant/dielectric system

Tool holders

Flanges/adapters

Grinding wheel/electrode accessories
