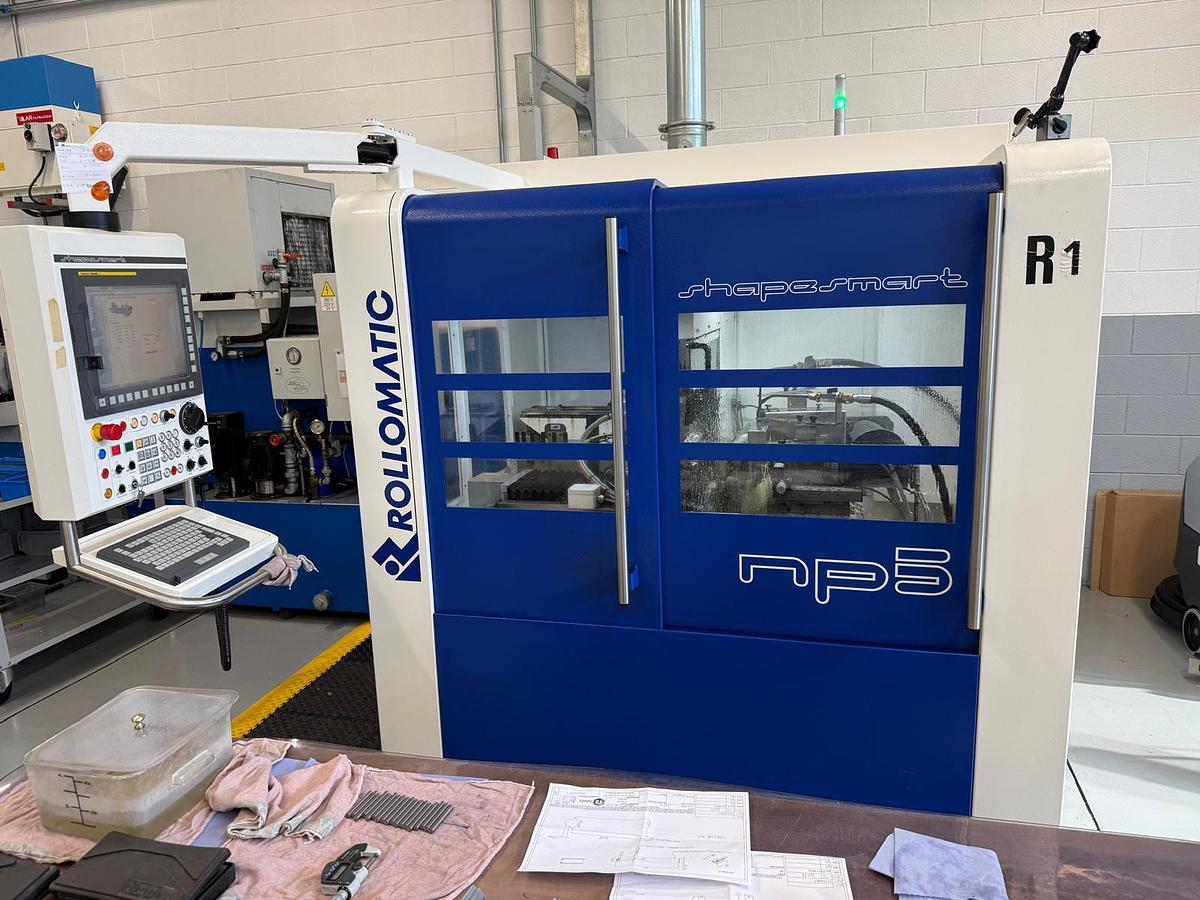

2018 Rollomatic NP5

2018 ROLLOMATIC SHAPESMART NP5

5-Axis CNC Precision Cylindrical Pinch/Peel Grinding Machine

Manufacturer: Rollomatic

Model: ShapeSmart NP5

Year: 2018

Machine Type: CNC Precision Cylindrical Pinch/Peel Grinder

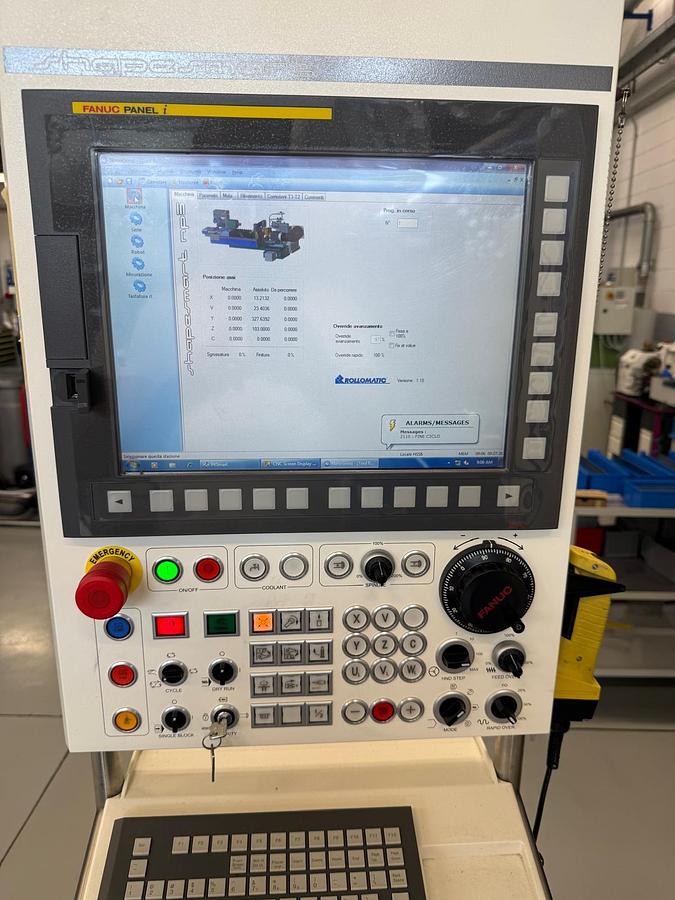

CNC Control: FANUC Series 32iB

Grinding Axes: 5 CNC Axes – C / Y / Z / X / V

Automation: Integrated 3-Axis Robot Loader

Programming Software: NanoGrind™ / P4Smart®

DESCRIPTION

The Rollomatic ShapeSmart NP5 is a high-precision 5-axis CNC cylindrical Pinch/Peel grinding machinespecifically designed for cutting tool blank preparation, precision punches, micro drills, mold and core pins, form tools and other precision components requiring complex geometries and high length-to-diameter ratios.

The patented Pinch/Peel grinding process combines high material removal capability with exceptional concentricity, dimensional control and surface finish. With its CNC-controlled workhead and fifth axis, the NP5 is also capable of grinding flats, hexes and non-concentric cam profiles, considerably expanding its range of applications.

GRINDING CAPACITY

• Grinding Diameter: Ø 0.025 – 25.0 mm (0.001" – 1")
• Maximum Grinding Length: 330 mm (13")
• Clamping Collets: W20
• C-Axis / Tool Rotation: 0 – 3,000 rpm
• C-Axis Resolution: 0.001°
• Linear interpolation of up to 4 axes simultaneously, plus 3 robot axes.

CNC AXES & TRAVELS

• Y-Axis Travel: 350 mm (13.7")
• Y-Axis Resolution: 0.0001 mm
• Z-Axis Travel: 100 mm (3.95")
• Z-Axis Resolution: 0.0001 mm
• X-Axis Travel: 29 mm (1.14")
• X-Axis Resolution: 0.00001 mm
• V-Axis Travel: 29 mm (1.14")
• V-Axis Resolution: 0.00001 mm
• C-Axis: CNC-controlled workpiece rotation, 0–3,000 rpm.

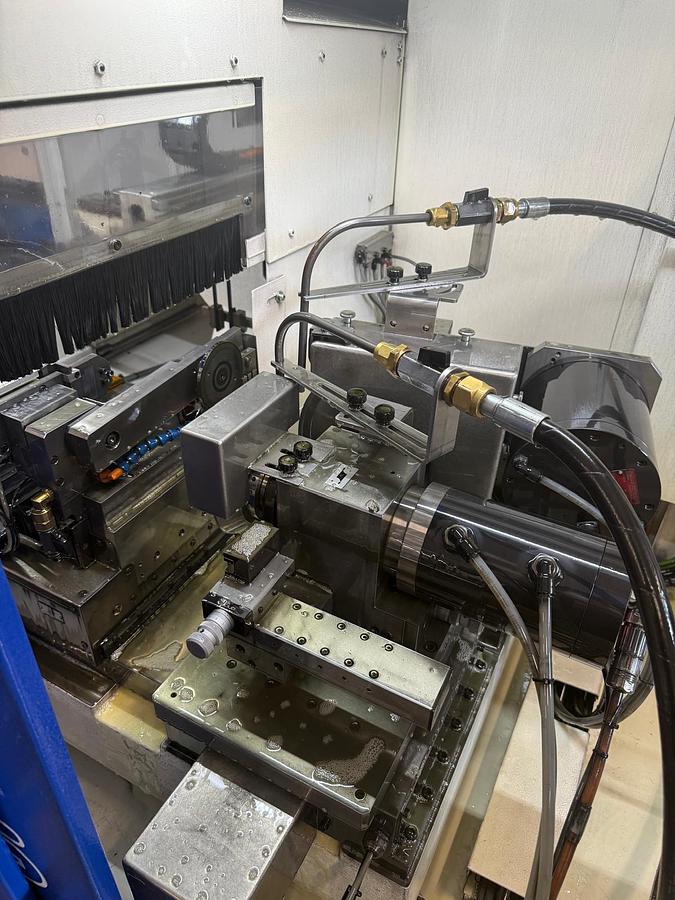

GRINDING SPINDLES

Roughing Spindle

• Motor Power: 8.5 kW / 11 HP
• Belt driven
• Internal cooling
• Spindle Diameter: Ø 100 mm (4")
• Rollomatic PerfectArbor™
• Grinding Wheel: Ø 250 mm (10")
• Adjustable cutting speed via frequency converter

Finishing Spindle

• Motor Power: 1.4 kW / 2 HP
• Direct drive
• Internal cooling
• Spindle Diameter: Ø 100 mm (4")
• Rollomatic PerfectArbor™
• Grinding Wheel: Ø 150 mm (6")
• Adjustable cutting speed via frequency converter.

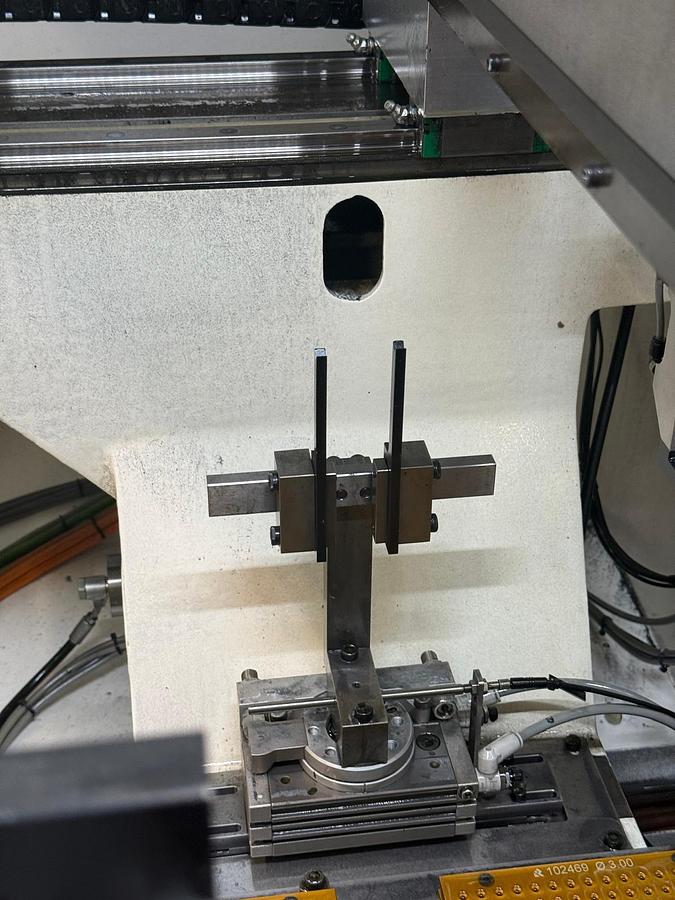

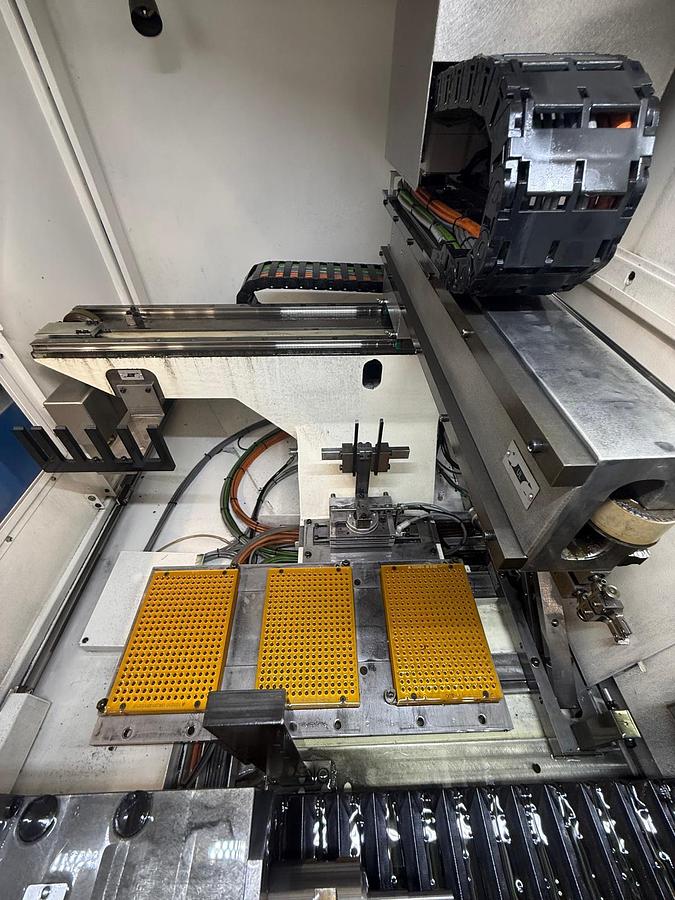

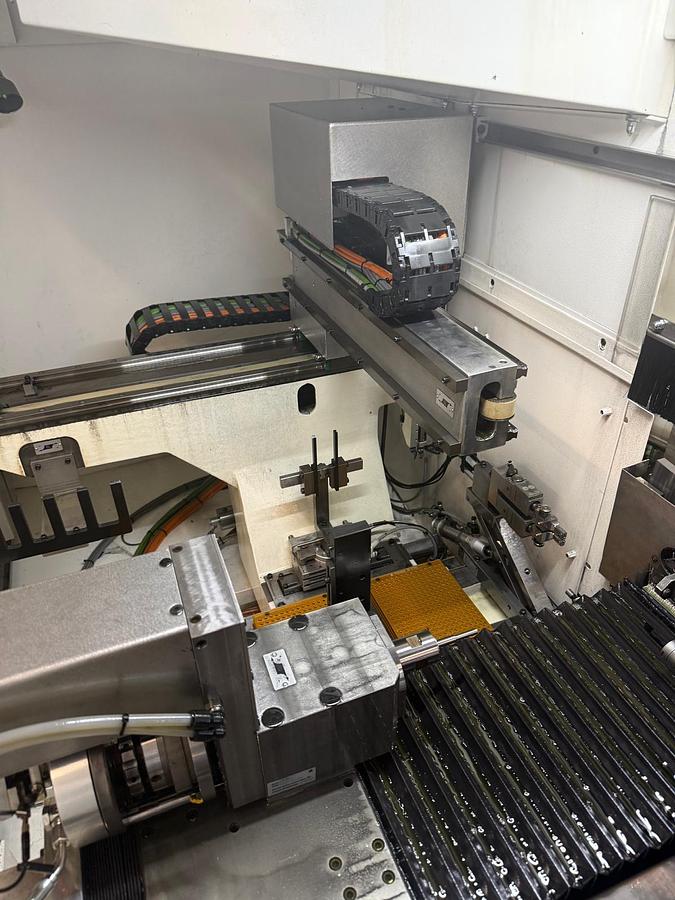

AUTOMATIC ROBOT LOADER

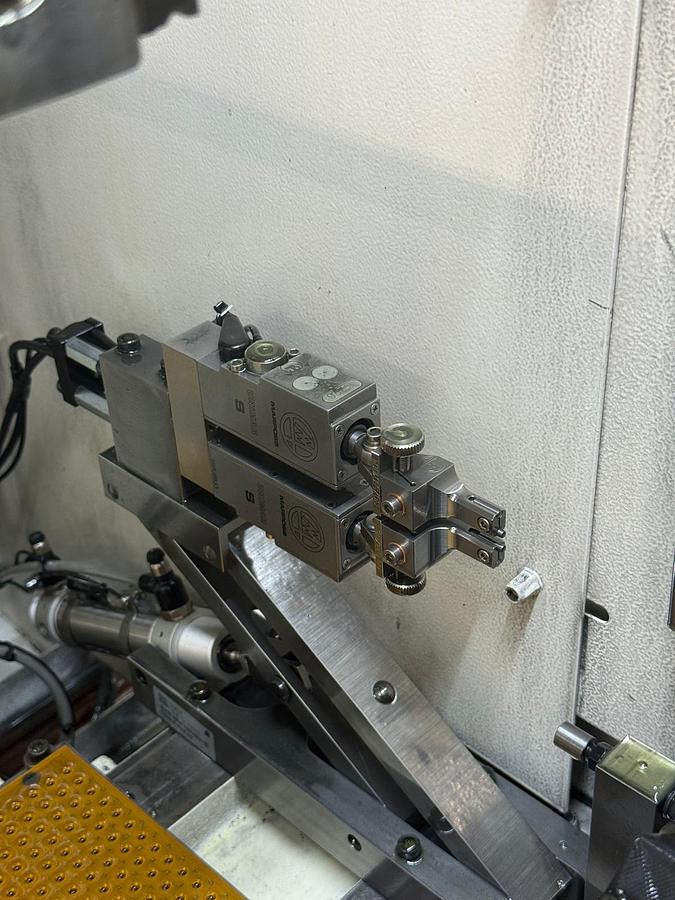

The ShapeSmart NP5 features an integrated 3-axis pick-and-place robot loader, designed for automated and unattended production.

Automatic Loading Capacity:

• Shank Diameter: Ø 1.0 – 20.0 mm (0.04" – 0.78")
• Overall Workpiece Length: 30 – 300 mm (1.2" – 12")
• Loader capacity: up to 1,000 pieces
• Capability to program and manufacture up to 10 different tool shapes in one setup
• Approximately 10-minute setup change for shank diameter changes.

MANUAL LOADING CAPACITY

• Shank Diameter: Ø 1.0 – 25.0 mm (0.04" – 1")
• Overall Workpiece Length: 20 – 350 mm (0.787" – 13.8").

TECHNOLOGY & FEATURES

• Patented Pinch & Peel grinding technology
• FANUC Series 32iB CNC control
• NanoGrind™ machine programming platform
• P4Smart® profile programming software

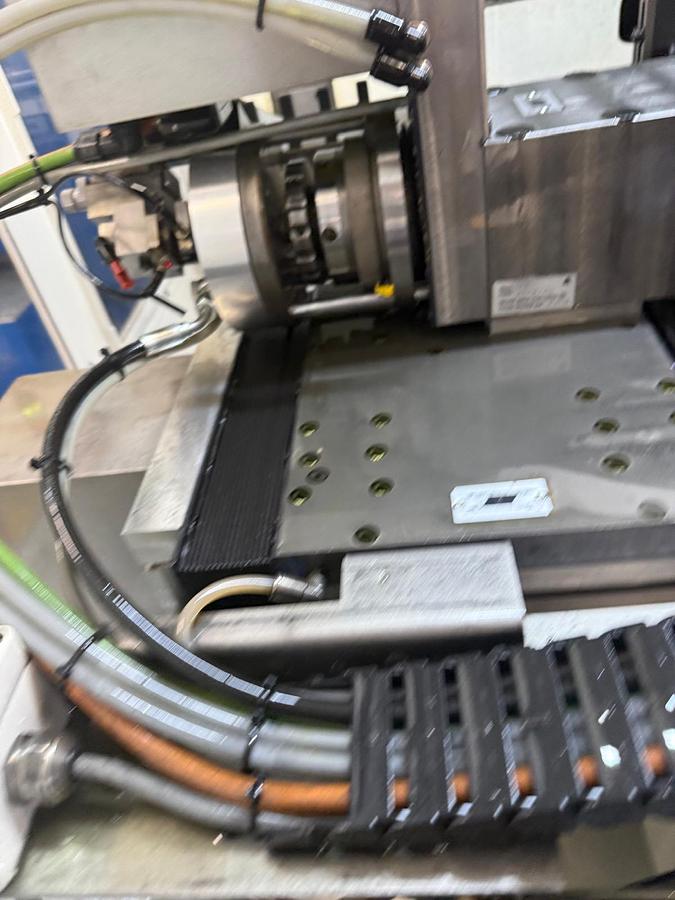

• CNC-controlled workhead
• Automatic grinding wheel position qualification
• Linear glass scales on X and V axes
• Rollomatic BoxSlide™ high-stability axis design
• Rollomatic PerfectArbor™ wheel flange system
• Retractable shank guide/support system
• V-block and pressure roller workpiece support
• Automatic ball screw lubrication
• Part returning station for automatic grinding of double-ended tools
• Integrated 3-axis automatic loader
• Suitable for unattended production.

PRECISION CAPABILITY

According to Rollomatic's factory literature, the ShapeSmart NP5 was designed to provide:

• Mirror surface finish
• Size control within ±0.0005 mm
• Tool runout concentricity within 0.001 mm
• Accurate shape control

Rollomatic reports a production test involving 100 pieces of Ø1.023 mm in which an NP5 equipped with the in-process gauging system maintained ±0.0005 mm without operator correction.

TYPICAL APPLICATIONS

• Cutting tool blanks
• Precision punches
• Micro drills
• Drill blanks
• Form tools
• Mold & core pins
• Carbide components
• Precision cylindrical components
• Flats and hexagonal profiles
• Tapers and radii
• Non-concentric profiles
• Double-ended tools

MACHINE DIMENSIONS & ELECTRICAL

• Dimensions (L × W × H): 1,830 × 1,765 × 2,441 mm
• (72" × 70" × 96")
• Approximate Net Weight: 3,000 kg / 6,614 lbs
• Maximum Total Power: 15 kW
• Electrical Supply: 3 × 400 V / 25 A.

CONDITION

Used – Excellent Condition

This 2018 Rollomatic ShapeSmart NP5 appears to be in exceptionally clean condition and is equipped with automatic loading for high-productivity manufacturing.
