2001 Rollomatic 620XS

2001 ROLLOMATIC GRINDSMART 620XS

6-Axis CNC Tool & Cutter Grinder with Automatic Loader

Manufacturer: Rollomatic

Model: GrindSmart 620XS / CNC 620 XS

Year: 2001

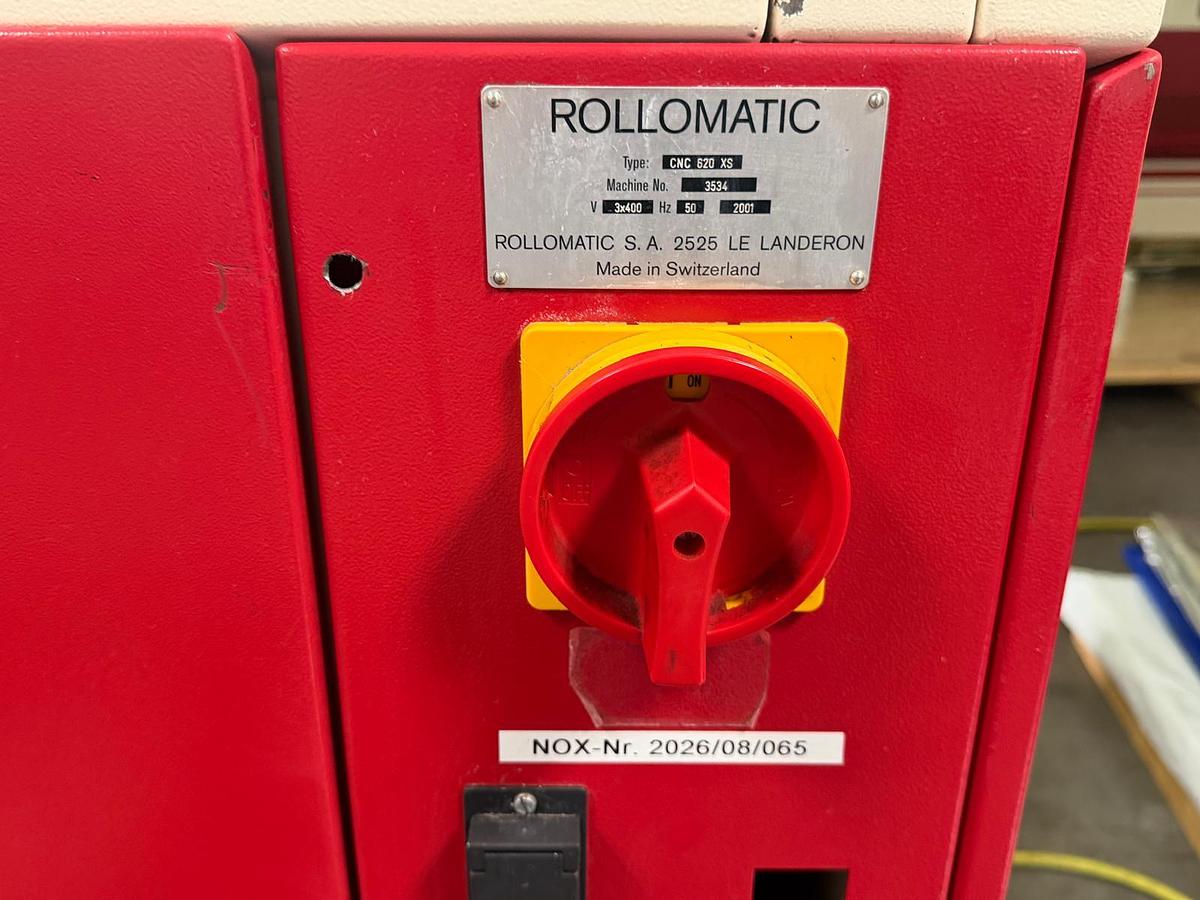

Machine No.: 3534

Country of Origin: Switzerland

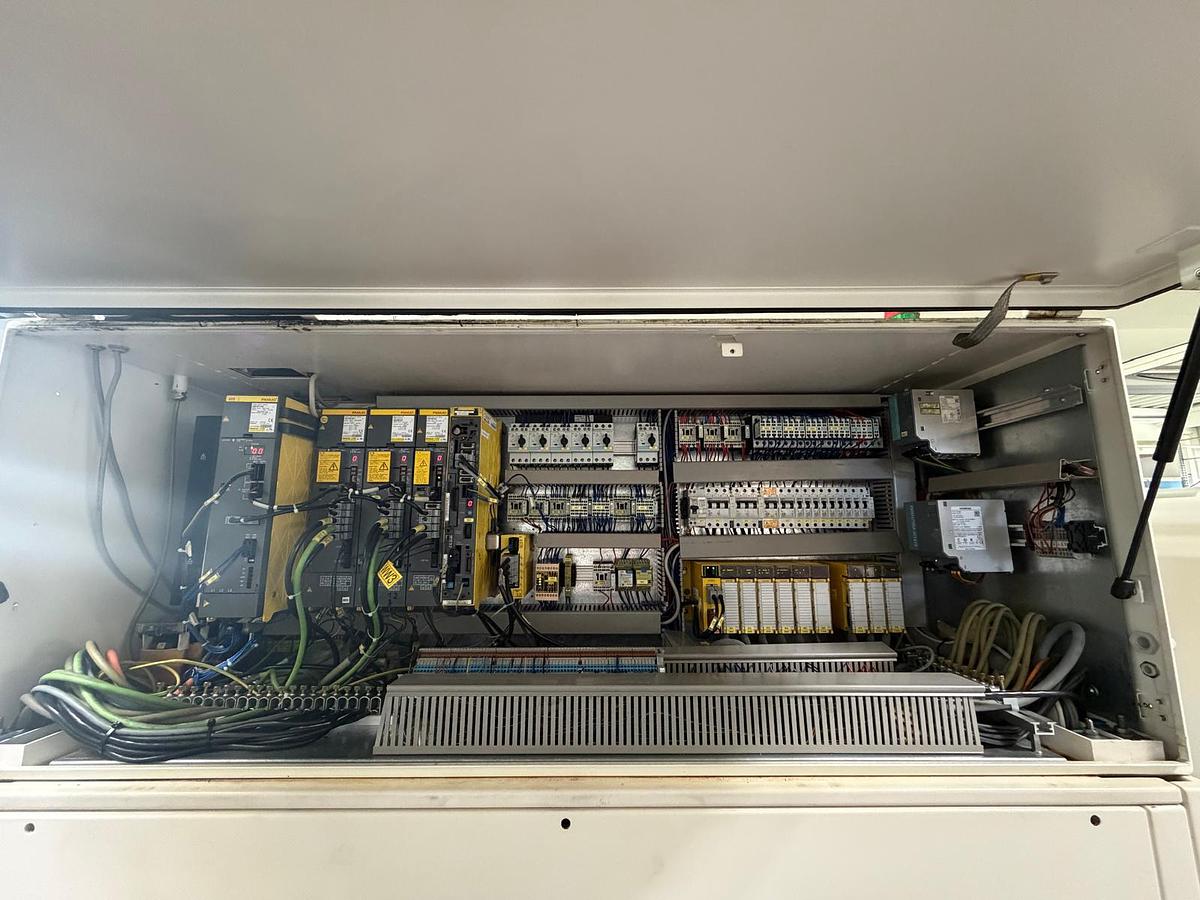

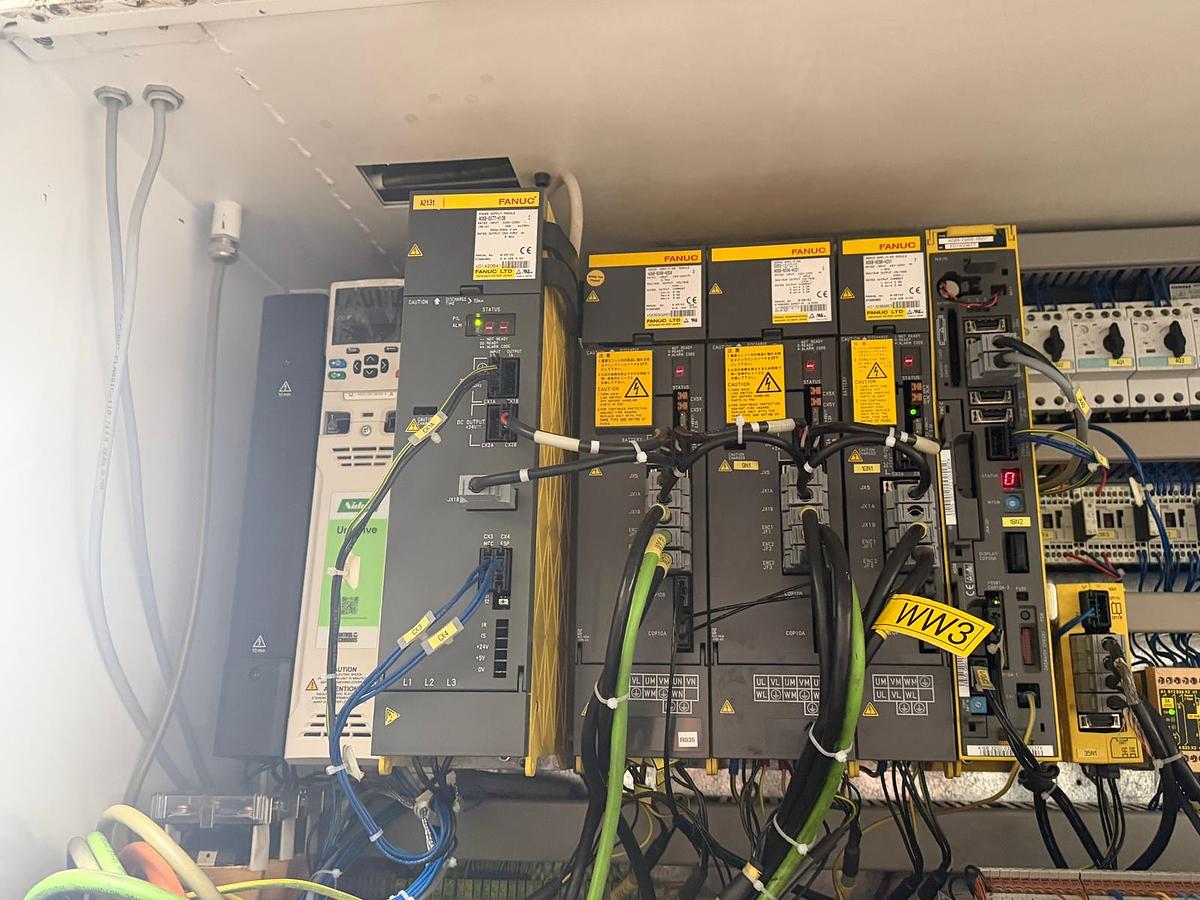

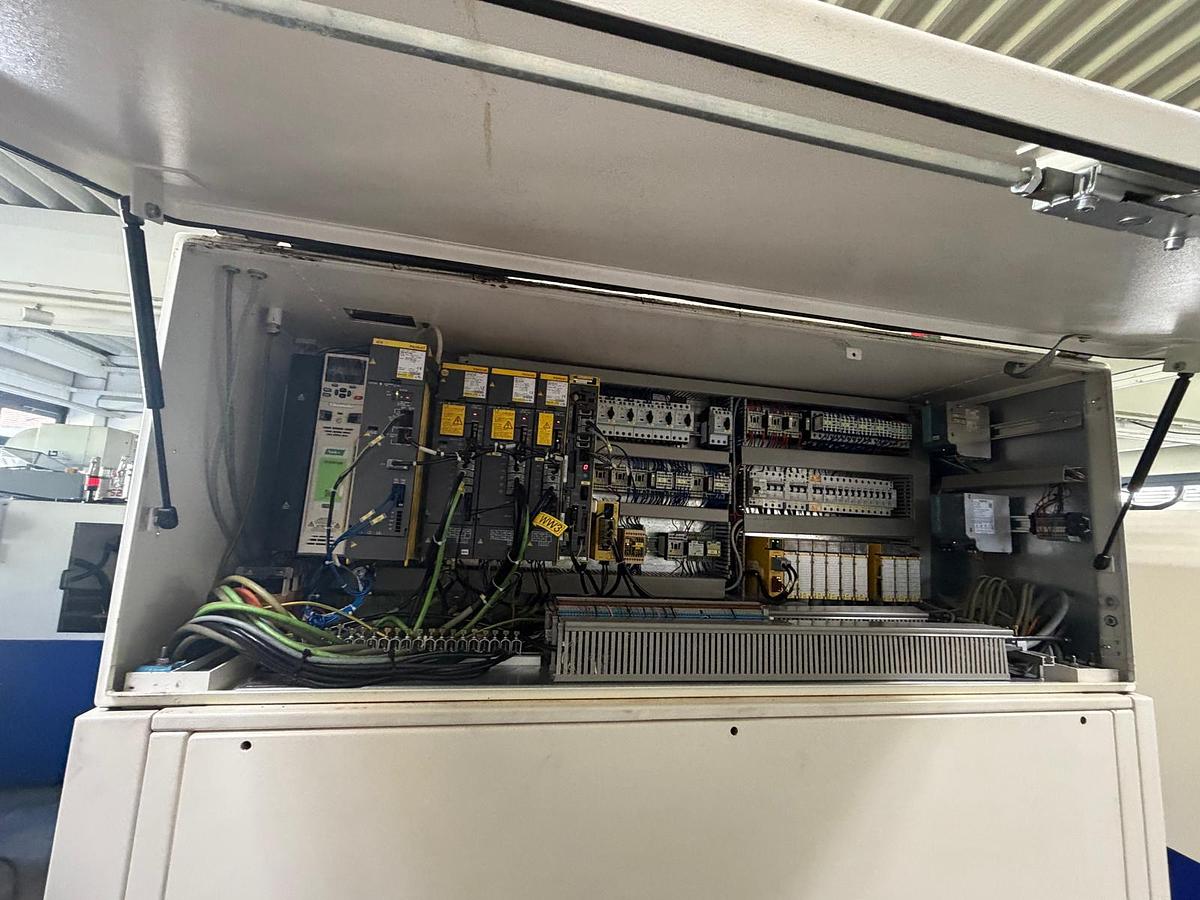

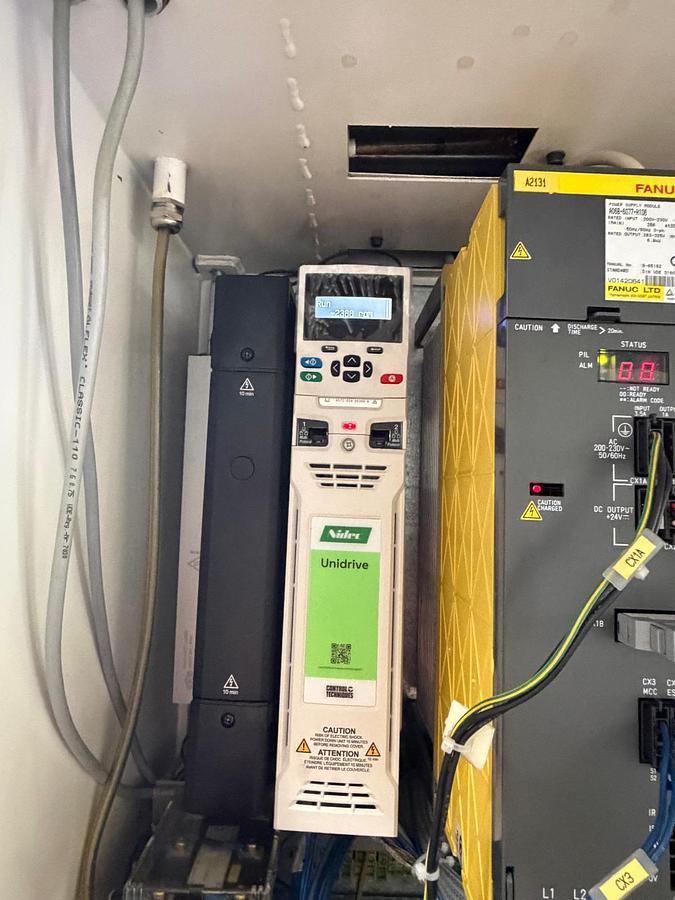

CNC Control: FANUC

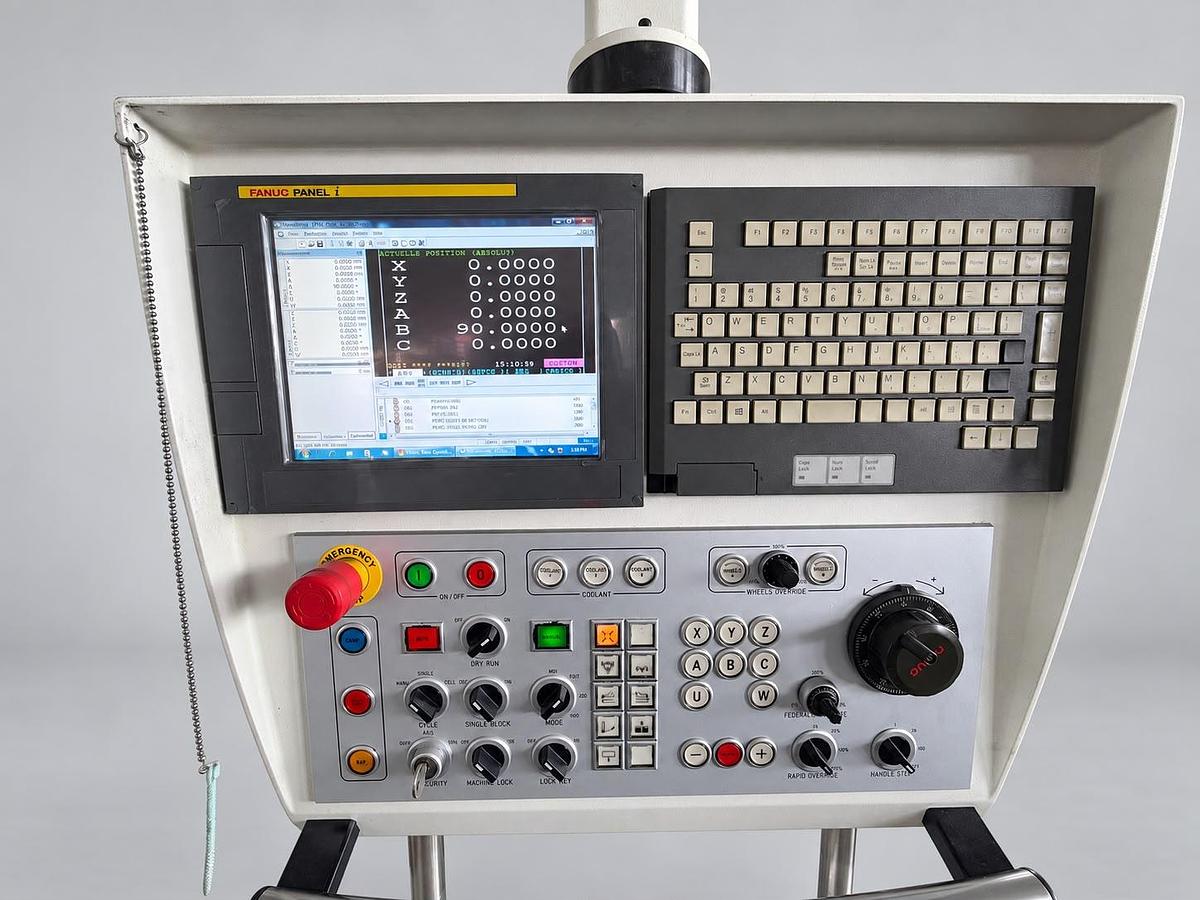

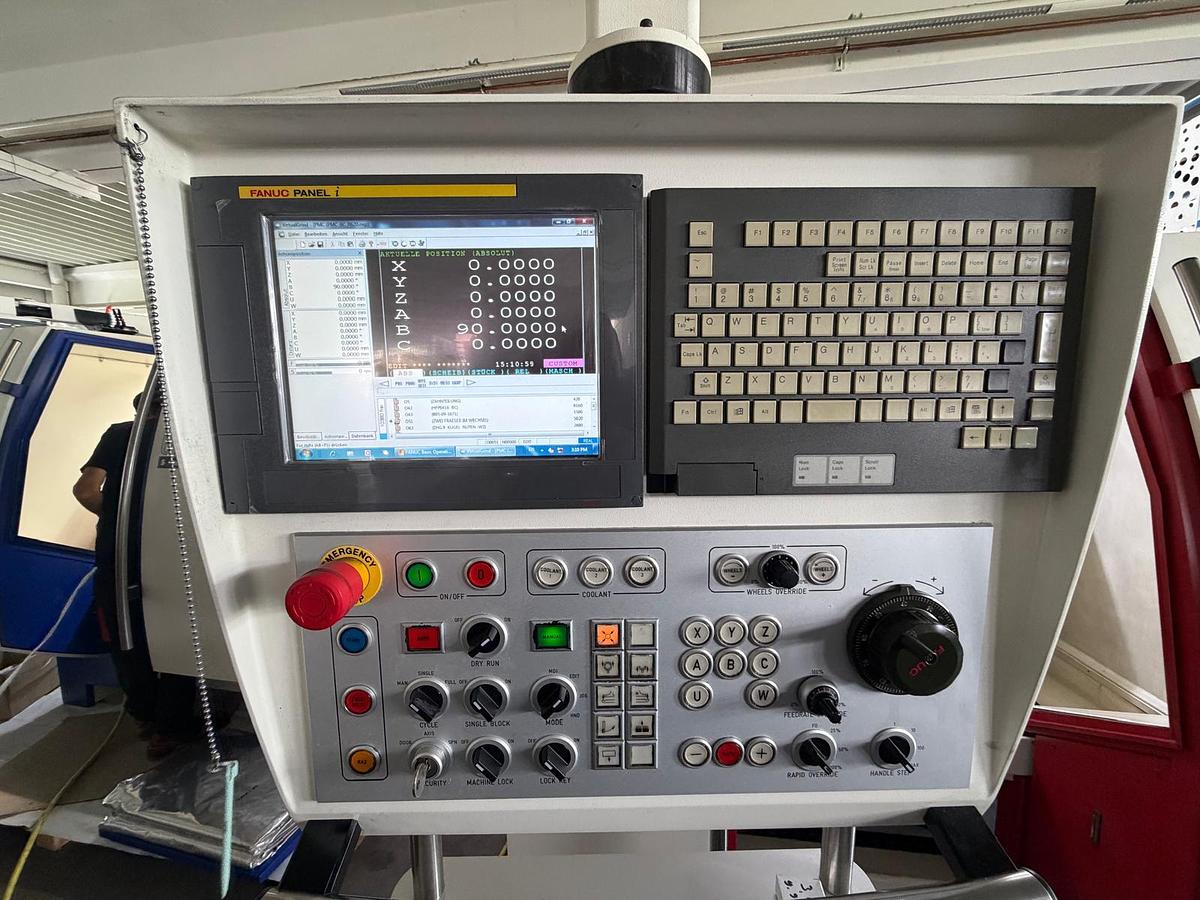

Operator Interface: FANUC Panel i

Software: Rollomatic VirtualGrind® Version 4.11

Machine Axes: 6 CNC Axes – X, Y, Z, A, B, C

Automation: Integrated Automatic CNC Loader

DESCRIPTION

The Rollomatic GrindSmart 620XS is a fully automatic 6-axis CNC tool and cutter grinding machine designed for the high-precision manufacture and regrinding of rotary cutting tools.

Designed and manufactured in Switzerland, the 620XS provides complete grinding of complex cutting tools in a single setup and is particularly suited for the production of solid carbide and HSS cutting tools requiring high accuracy, repeatability and complex geometries.

The machine combines six CNC-controlled grinding axes with an integrated automatic loading system, allowing both small-batch production and unattended high-volume manufacturing.

This particular machine is equipped with a FANUC CNC control, FANUC Panel i operator interface and Rollomatic VirtualGrind® Version 4.11 software.

WORKPIECE CAPACITY

• Grinding Diameter Range: Ø 0.1 – 16.0 mm
• Suitable for carbide, HSS and other cutting-tool materials
• Automatic production of small and medium diameter rotary cutting tools
• Capable of grinding complex cutting-tool geometries in a single setup

A contemporary description of the 620XS gives the production range as Ø0.1–16 mm and specifically describes the machine as a fully automated six-axis CNC grinding center.

6 CNC AXES

Linear Axes

• X-Axis Travel: 320 mm
• Y-Axis Travel: 220 mm
• Z-Axis Travel: 180 mm
• Linear Resolution: 0.0001 mm
• Rapid Traverse: up to 12 m/min
• Linear glass-scale feedback

Rotary Axes

• A-Axis: approx. 225° total range
• A-Axis Resolution: 0.00005°
• Rotary glass-scale feedback
• B-Axis: -75° to +130°
• B-Axis Resolution: 0.0001°
• C-Axis: continuous workpiece rotation
• C-Axis Resolution: 0.001°

Published specifications for the 620XS corroborate approximately 320/220/180 mm travel on X/Y/Z and the A/B/C rotary-axis arrangement.

GRINDING SPINDLE

• Grinding Spindle Power: approximately 7 kW / 10 HP
• Direct-drive grinding spindle
• Variable spindle speed
• Multi-wheel grinding capability
• Capability for multiple grinding wheels in one setup

Here I would not put an exact maximum RPM yet. I found conflicting published specifications: one source gives 2,000–7,200 rpm, while another gives 500–10,000 rpm.

The same applies to maximum wheel diameter: one published specification says 150 mm, another 8"/200 mm. Since we don't have the original build sheet for Machine No. 3534, I'd rather not advertise an uncertain number.

WORKHOLDING

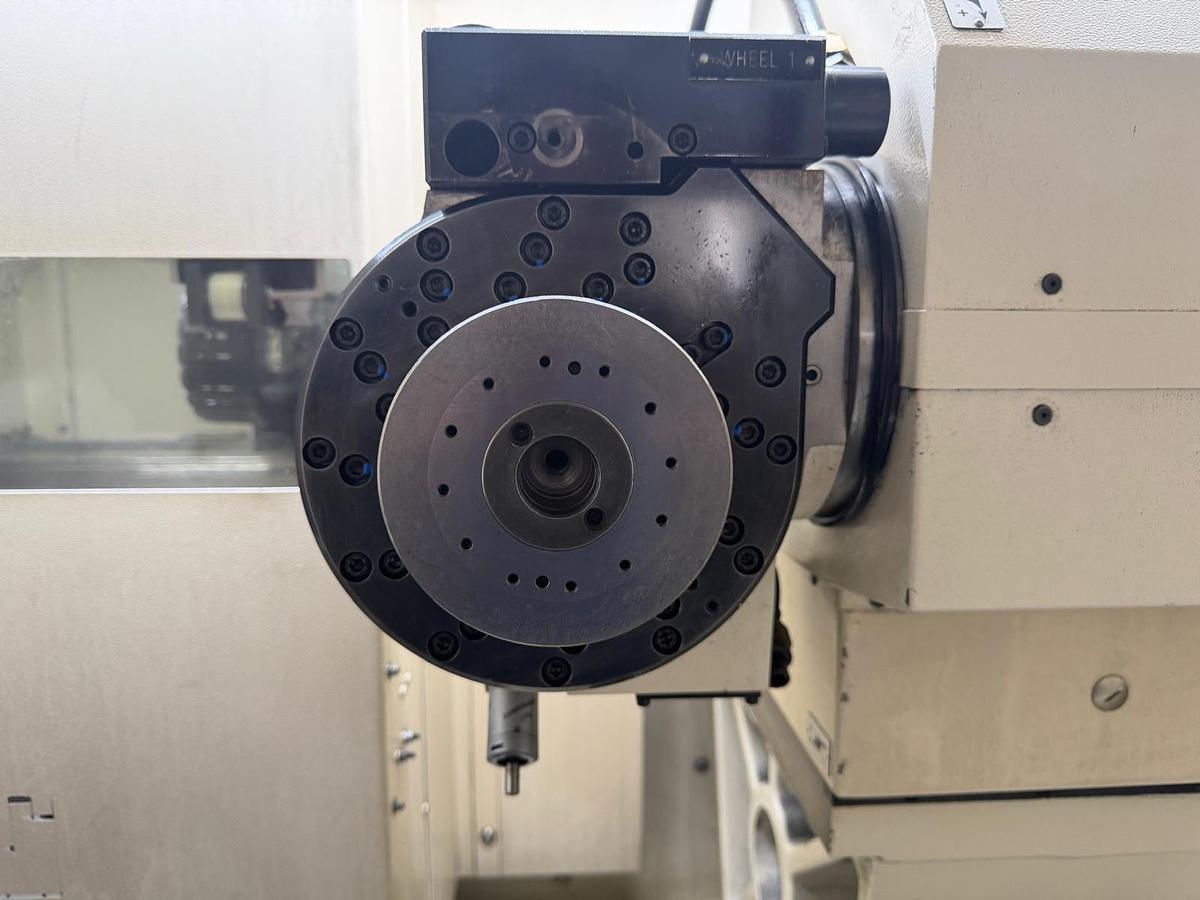

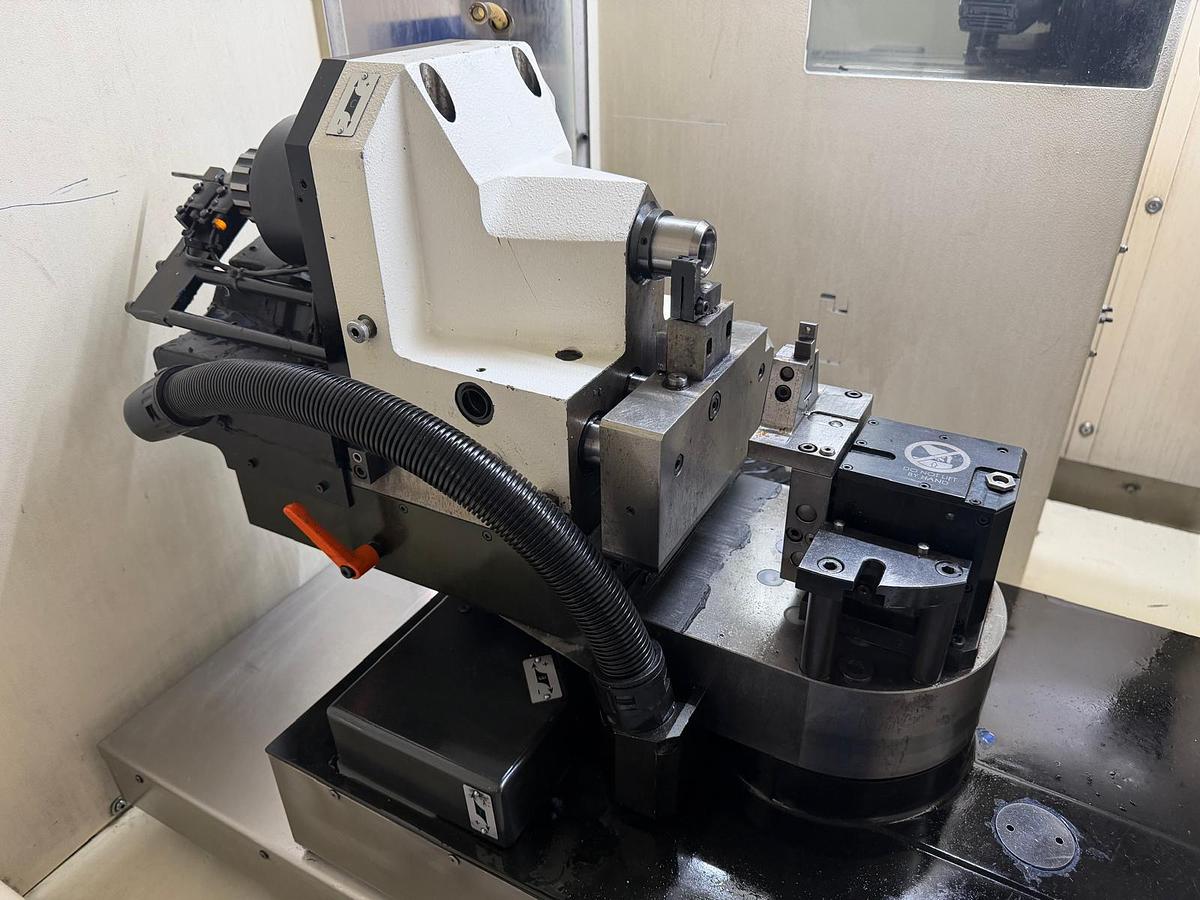

• Precision CNC workhead
• W20 collet system reported as standard configuration
• Automatic workpiece clamping
• Precision tool support / guiding system
• Suitable for long and slender cutting tools

Published specifications give the standard workholding as W20 collets, with W15 available as an alternative, and a clamping range up to approximately 20 mm depending on configuration.

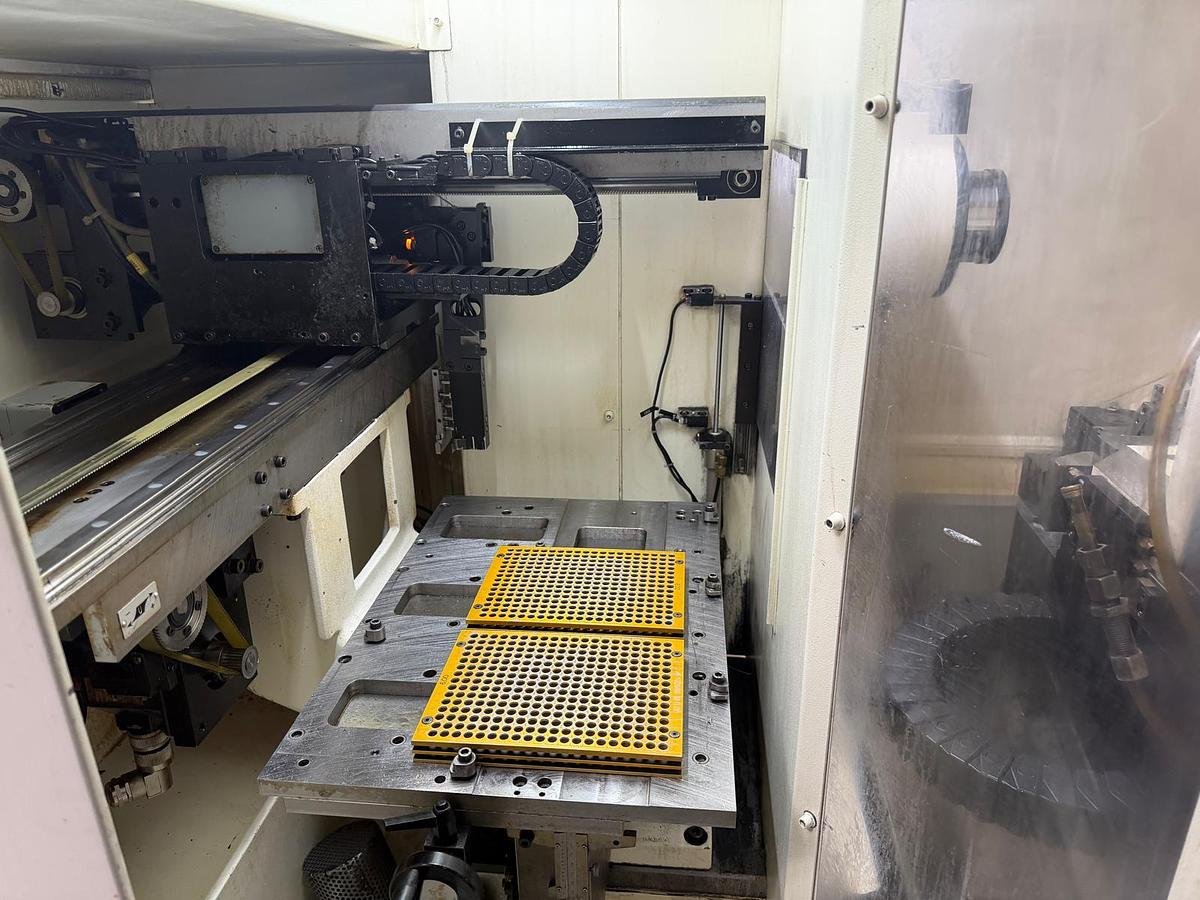

AUTOMATIC LOADING SYSTEM

• Integrated automatic CNC loader
• Pick-and-place workpiece handling
• Multiple workpiece loading cassettes
• Automatic loading and unloading
• Capacity of up to 1,000 workpieces, depending on workpiece diameter and cassette configuration
• Designed for unattended production
• Automatic processing of production batches with minimal operator intervention

A period description of the GrindSmart 620XS specifies a high-speed 2-axis CNC robot, up to 65 m/min, capable of handling production batches of up to 1,000 pieces.

SOFTWARE & PROGRAMMING

• Rollomatic VirtualGrind® Version 4.11
• Graphical tool programming environment
• Tool geometry programming
• Grinding process programming
• Tool simulation capabilities
• FANUC CNC integration

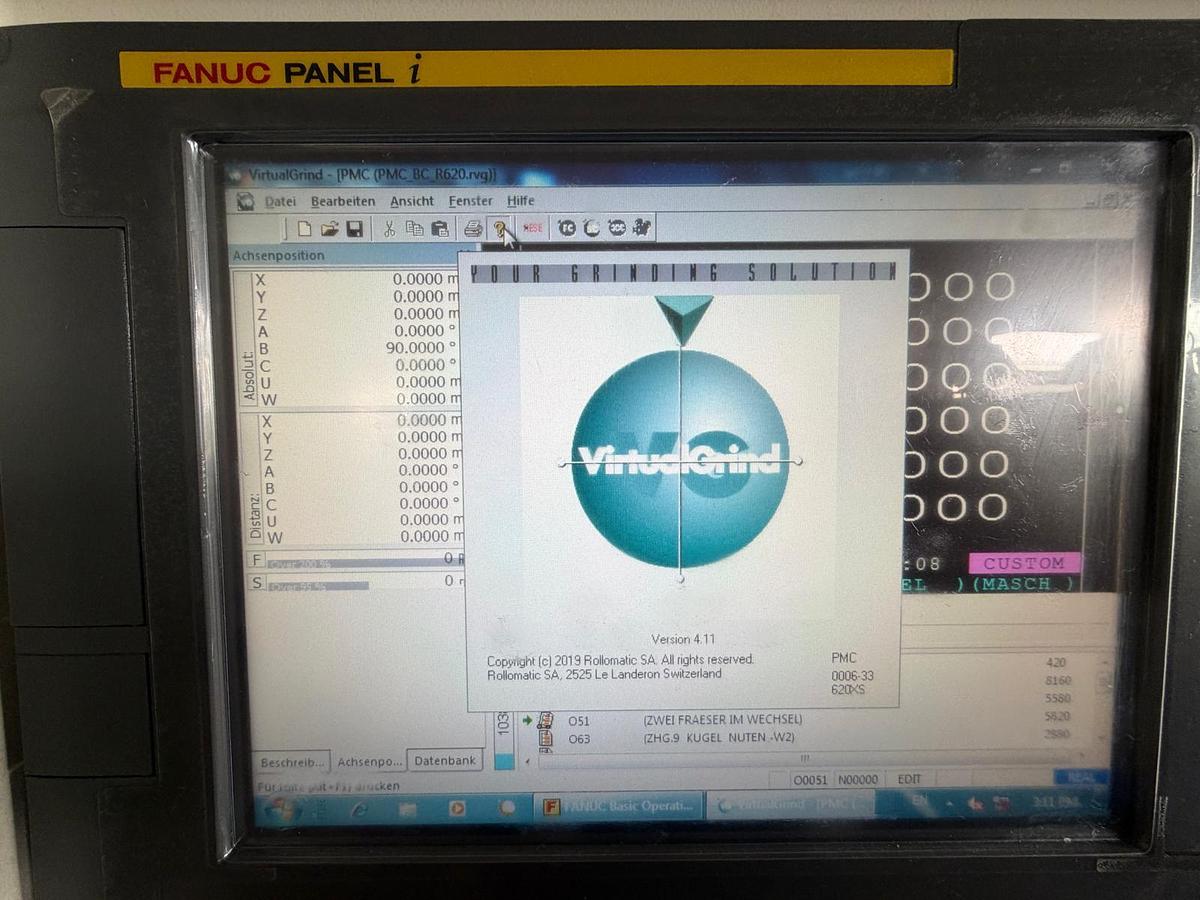

Important: VirtualGrind Version 4.11 is confirmed directly by the software screen of this particular machine.

TYPICAL APPLICATIONS

• End mills
• Ball nose end mills
• Drills
• Step drills
• Reamers
• Form cutters
• Rotary burrs
• Special cutting tools
• Carbide cutting tools
• HSS cutting tools
• Medical and surgical rotary tools

Contemporary Rollomatic material describes applications ranging from end mills, drills, reamers, step and form tools to rotary tools used in medical applications. A Norton technical application also specifically documents flute grinding a Ø0.8 mm tungsten-carbide drill on a Rollomatic 620XS, which reinforces the machine's micro-tool capability.

MACHINE DIMENSIONS

Published specifications:

• Length: approximately 2,160 mm
• Width: approximately 1,600 mm
• Height: approximately 2,151 mm
• Machine Weight: approximately 3,200 kg
• Maximum Power: approximately 18 kW

MACHINE CONDITION

Used – Very Good Condition

Machine appears complete and in very good overall condition.

The machine is shown powered up, with the FANUC CNC system and Rollomatic VirtualGrind software operational.

Equipped with integrated automatic loader and loading cassettes for automatic production.
